Professional Auto Die Cutting Machine Can Print PVC Film / Copper / Foil

large.img.alt
small.img.alt

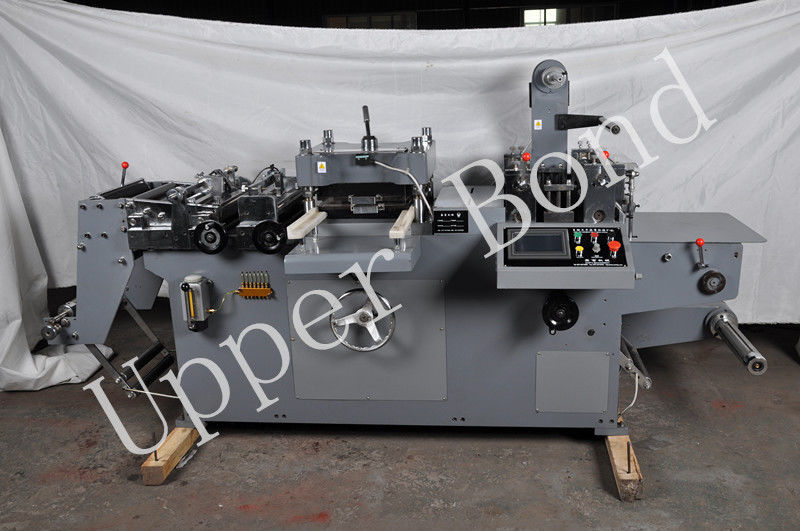

Large Image :  Professional Auto Die Cutting Machine Can Print PVC Film / Copper / Foil

Product Details:

Place of Origin: China
Brand Name: Upperbond
Certification: CO
Model Number: MQ320

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 30Works Dates
Payment Terms: L/C, T/T
Supply Ability: 1000sets/year
Detailed Product Description
Model Type: MQ320 MQ420 MQ570 Die Cutting Speed: 30-180time/min
Max Web Width: 320mm——570mm Max Die Cutting Width: 320mm——560mm
Max Die Cutting Length: 300mm——400mm Positioning Precision: ±0.10mm
High Light:

Label Inspection Machine

,

Post Press Machines



Professional Auto Die Cutting Machine Can Print PVC Film / Copper / Foil





INTRODUCTION



The machine adopted imported wiring,from bottom-upstructure,Laminated,die cutted,Feed-in.educate

waste materid cutting or rolling are controllrd by computer in one time.It include stamping function,photocell device.


FUNCTION


1. It is a the best machine which can be match with printing machine for making paper adhesive trademark terylene film trademark Radium trademark.


2. It can die cutting many kinds of dielectric and electric material such as:PVC,film,copper foil,Shots,aluminum foil Foam.





SPECIFICATION



Model type  MQ320 MQ420 MQ570
Die Cutting Speed 30-180m/min  30-180m/min  30-150m/min
Max Feeding Diameter 500mm 500mm 600mm
Max Web Width  320mm 420mm 570mm
Max Die Cutting Width 320mm 42mm 570mm
Max Die Cutting Length 300mm 400mm 400mm
Positioning Precision ±0.10mm ±0.10mm ±0.10mm
Main Motor Power 2.2kw 3kw 4kw
Power Supply Voltage 220v±10% 220v±10% 220v±10%
Weight 1700KG 2000KG 3000KG
Dimension (mm) 2800x950×1400 2800×1050×1400 3000×1250×1400








Professional Auto Die Cutting Machine Can Print PVC Film / Copper / Foil 0
