|Aluminum Roll Diameter:||600mm||Dimension:||8290x4760x4000mm|
|Largest Paper Size:||720 X1020 Mm||Largest Printing Size:||700x1020 Mm|
|Min Paper Size:||340x480 Mm||Plate Thickness:||0.2~0.5mm|
Label Inspection Machine,
Cold Stamping Machine

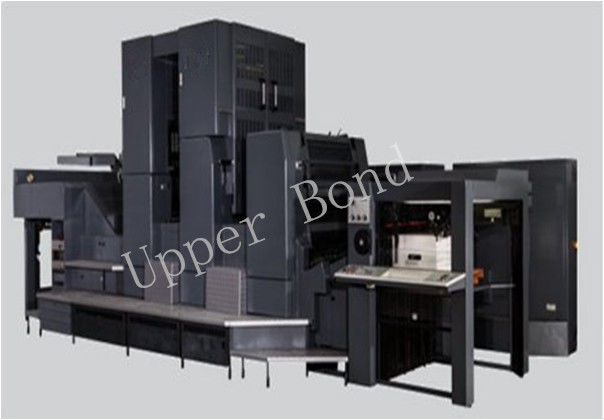

7000 Pic / Hour Cold Stamping Machine Post Press Machines Low Failure Rate
1. For the demand of cold stamping,such as alcohol and tobacco packaging, cosmetics, self-adhesive label industry , we developed MK1020CF offline cold stamping machine. Solved long attachment time of cold stamping machine of the other brand , long production downtime, high rejection rate and low utilization rate of electrochemical aluminum faults.
2. MK1020CF dedicated to do cold stamping products, can also be monochrome printing,its electrochemical aluminum utilization rate is 90% or more, greatly saving the cost of consumables.
3. Can easily achieve fine stamping line, small branches, large stamping advantage is obvious.
4. Using patented way of swinging rod type leapfrog, ensure high speeds leapfrog stable and accurate.Swinging rod control motor is imported brand from Germany, used imported motion control, precision positioning, rapid reaction, low fault rate and provides guarantee for effectively managing electrochemical aluminum.Rocker shaft for special material, turn easy and responsive.
5. Using floating roller cylinder control, tension control device to ensure constant controllable tension of aluminum foil.With the displacement sensor coordinate control system to put foil amount real-time adjustment.Constant speed and foil roll adopts imported servo motor control, aluminum foil and stable precision.
6. And foil axis adopt gas rose axis, chuck with the security card, change fast, safe and reliable, and volume can reach 600 mm in diameter.
|Electrochemical aluminum width size||400~970mm|
|Hot stamping size paper feed direction||360~700mm|
|Electrochemical aluminum roll diameter||3 inches|
|Repeat accuracy||+ / - 0.15 mm|
|Largest paper size||720 x1020 mm|
|Largest printing size||700x1020 mm|
|Polishing plate size||780x1030 mm|
|Plate size||770x1030 mm|
