Product Details:
Payment & Shipping Terms:
|

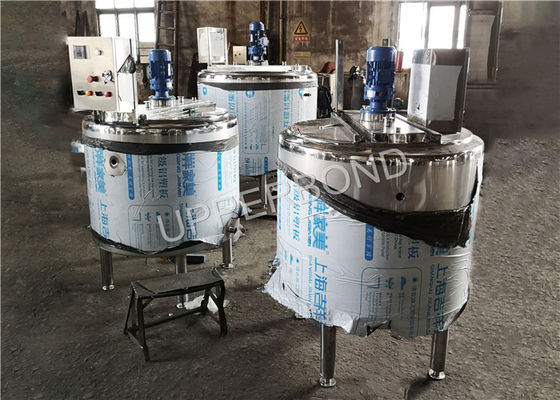

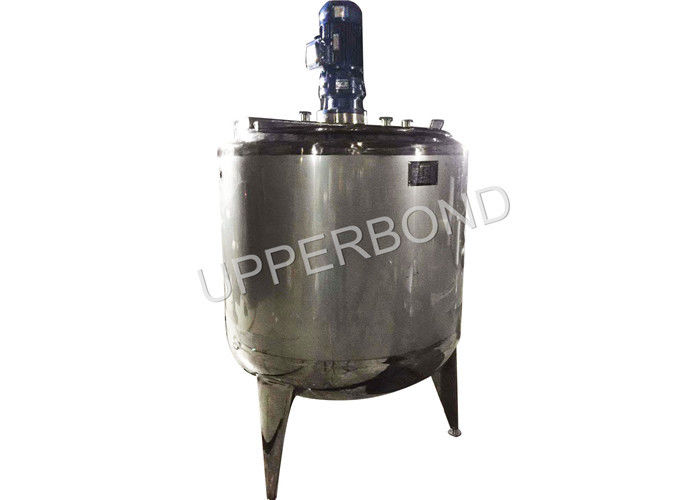

| Name: | Mixing Tank | Effective Volume: | 3000L |
|---|---|---|---|
| Dimension: | 1410*2000MM | Total Height: | 4000mm |
| Diameter Of Inlet&outlet: | 51mm | Motor Power: | 1.5kw |
| Blending Speed: | Common Rotation Speed 35,43,60 |
Applicable range
◆ Used as liquid storage tank,liquid composing tank,temporary storage tank and water storage tank etc.
◆Ideal in fields such as foods,dairy products,fruit juice beverages,pharmacy,chemical industry and biological engineering etc.
It can be made according to special requirements of customers. Total height(H) is in accordance with outlet height of 800 mm.lf ouelet height is changed,then total height(H)shall also be adjusted.
Configuration of tank
◆Quick open manhole.
◆Various models of CIP claning machines.
◆ Fly and insect resistant sanitary breathing cover.
◆ Adjustable triangular bracket.
◆Dismountable materials input pipe assembly
◆ Thermometer(According to customer requirements).
◆ Ladder(According to customer requirements).
◆Paddle blender
◆ Liquid level meter and level controller(According to customer requirements).
◆Eddy-proof board.
Technical specification
|
Effective volume (L) |
Dimension Of tank (mm*mm) |
Total Height (mm) |
Diameter Of inlet&outlet (mm) |
Motor power (kw)
|
Blending Speed (r/min) |
| 500 | 840x1000 | 2750 | 38 | 0.55 | / |
| 1000 | 1060x1220 | 3150 | 51 | 0.75 |
Common rotation speed 35,43,60, stepless speed reducer or dual-speed reducer are also available
|
| 1500 | 1160x1220 | 3350 | 51 | 0.75 | |
| 2000 | 1340x1500 | 3410 | 51 | 1.1 | |
| 3000 | 1410x2000 | 4000 | 51 | 1.5 | |
| 5000 | 1810x2000 | 4300 | 51 | 2.2 | |
| 10000 | 2300x2400 | 5050 | 51 | 3 | |
| 20000 | 2640x3660 | 6400 | 51 | 5.5 |
