Product Details:
Payment & Shipping Terms:
|
| Name: | Cigarette Pack Printing Machine | Paper Width: | Maximum 420mm |
|---|---|---|---|
| Printing Width: | Maximum 50mm | Printing Repeat Length: | 232mm--500mm |
| Gear: | 1/8" CP Teeth Space: 3.175 | Thickness Of Printing Plate: | 1.14mm |
| Thickness Of Double Sided Tape: | 0.5mm | Paper Roll: | ≤ф1500 Mm |
| Printing Plate: | Thickness 1.14mm | Thickness: | 0.5mm |
| Maximum Mechanical Speed: | 150m/min |

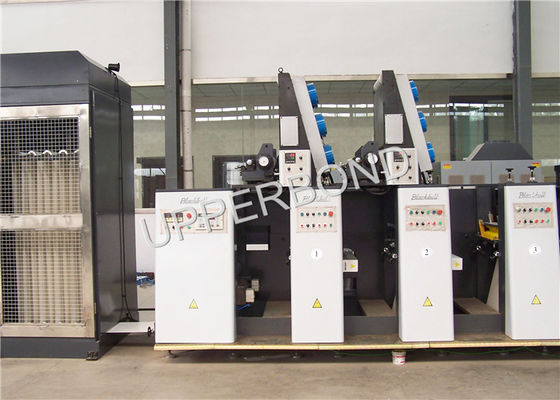

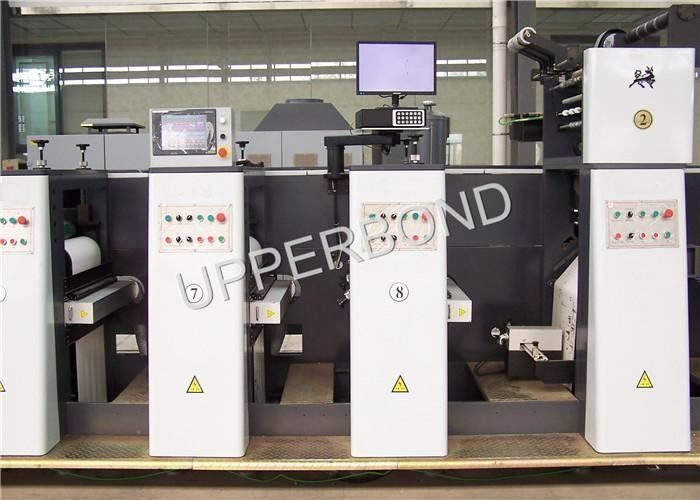

150m/min Cigarette Pack Printing Machine With High precision gear box transmission
Introduction
Cigarette box printing machine is a kind of mechanical equipment specially used for producing tobacco product packaging. These machines usually integrate advanced printing technology and automated control functions to efficiently and accurately complete a series of production processes from raw material input to finished product output.
Technical features:
• Environmental protection and energy saving: use environmentally friendly inks and solvents to reduce the impact on the environment; At the same time, optimize energy use and reduce energy consumption.
• Intelligent control: Equipped with advanced control systems to achieve accurate monitoring and management of the production process, improve product quality and stability.
• Easy maintenance: The design takes into account the convenience of daily maintenance, reducing maintenance costs and time.
Process flow
Non-stop discharge---dust removal---tension system---correction---11-color flexographic printing unit---3 groups of die-cutting units (embossing, pressing, die-cutting)---cigarette box collection system---waste discharge system---automatic overprinting system---PST still picture detection system.
Technical Parameters:
| Maximum paper width | 420mm |
| Maximum printing width | 420mm |
| Printing repeat length | 232mm--500mm |
|
Roll size |
≤ф1500 mm |
|
Specification of gear |
1/8" CP Teeth space: 3.175 |
|
Thickness of printing plate |
1.14mm |
|
Thickness of double sided tape |
0.5mm |
|
Maximum mechanical speed |
150m/min |
|
Drive |
High precision gear box transmission |
|
Power of UV System |
8kW/group |
|
Air Compressor |
0.7Mpa |
|
Power supply |
380V 50HZ |
|
Printing material |
Inner frame |
|
Thickness of printing material |
80-250GSM |
|
Operation panel |
In front of machine |
|
Machine color |
Light grey |
|
Operation language |
English |
Contact Person: Mr. Tom
Tel: +852 69439003
