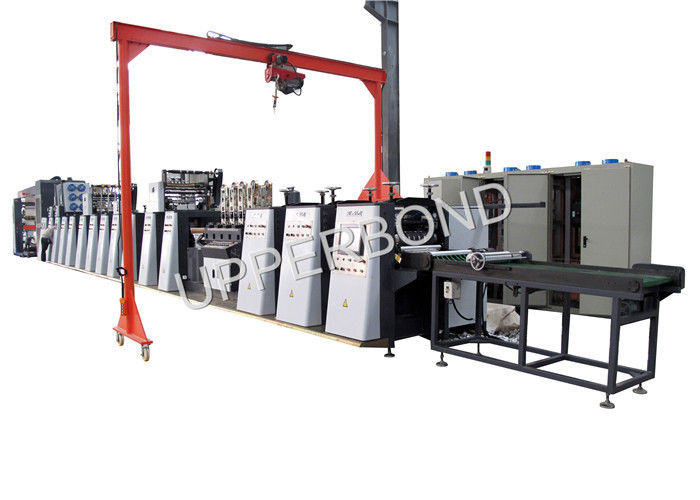

500mm Repeat Length Cigarette Pack Printing Machine With 420mm Paper

500mm Repeat Length Cigarette Pack Printing Machine With 420mm Paper
500mm Repeat Length Cigarette Pack Printing Machine With 420mm Paper 500mm Repeat Length Cigarette Pack Printing Machine With 420mm Paper

Large Image :  500mm Repeat Length Cigarette Pack Printing Machine With 420mm Paper

Product Details:

Place of Origin: China
Brand Name: Upper Bond
Certification: CO

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 40 Works Days
Payment Terms: L/C, T/T
Supply Ability: 50sets/year
Detailed Product Description
Name: Cigarette Pack Printing Machine Paper Width: Maximum 420mm
Printing Width: Maximum 50mm Printing Repeat Length: 232mm--500mm
Gear: 1/8" CP Teeth Space: 3.175 Thickness Of Printing Plate: 1.14mm
Thickness Of Double Sided Tape: 0.5mm Paper Roll: ≤ф1500 Mm



 500mm Repeat Length Cigarette Pack Printing Machine With 420mm Paper





Introduction



Cigarette box printing machine is a kind of mechanical equipment specially used for producing tobacco product packaging. These machines usually integrate advanced printing technology and automated control functions to efficiently and accurately complete a series of production processes from raw material input to finished product output.
Functions and uses:
• Multi-functional printing: Cigarette box printing machine can support a variety of printing processes, such as offset printing, gravure, flexo printing, etc., to meet the needs of different materials and effects.
• High-precision printing: The use of high-resolution print heads to ensure clear patterns and bright colors to enhance the visual appeal of products.
• High degree of automation: from the input of materials to the output of finished products, the entire process is highly automated, reducing manual intervention and improving production efficiency.
• Strong flexibility: Support rapid change of mold and adjustment of Settings to adapt to different specifications and styles of cigarette box production needs.





Technical features:
• Environmental protection and energy saving: use environmentally friendly inks and solvents to reduce the impact on the environment; At the same time, optimize energy use and reduce energy consumption.
• Intelligent control: Equipped with advanced control systems to achieve accurate monitoring and management of the production process, improve product quality and stability.
• Easy maintenance: The design takes into account the convenience of daily maintenance, reducing maintenance costs and time.





Process flow

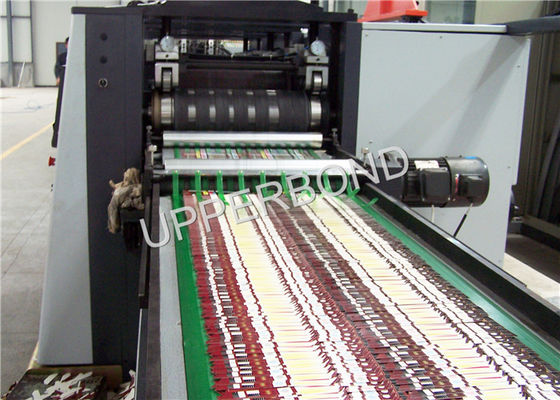

Non-stop discharge, dust removal, tension system, correction, 11-color flexographic printing unit, 3 groups of die-cutting units (embossing, pressing, die-cutting), cigarette box collection system, waste discharge system, automatic overprinting system, PST still picture detection system.





Technical Parameters:





Maximum paper width 420mm



Maximum printing width 420mm



Printing repeat length 232mm--500mm



Roll size ≤ф1500 mm



Specification of gear 1/8" CP Teeth space: 3.175



Thickness of printing plate 1.14mm



Thickness of double sided tape 0.5mm



Maximum mechanical speed 150m/min



Drive High precision gear box transmission



Power of UV System 8kW/group



Air Compressor 0.7Mpa



Power supply 380V 50HZ



Printing material Card paper



Thickness of printing material 80-250GSM



Operation panel In front of machine



Machine color Light grey



Operation language
