Product Details:
Payment & Shipping Terms:
|
Highlight: | commercial cigarette making machine,automatic cigarette making machines |
---|
30-100 Boxes/Min Molasses Cigarette Packing Machine with(70-180)mm×(30-85)mm×(14-50)mm Box
Application:

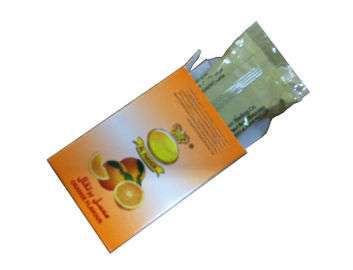

This machine is suitable for the molasses tobacco bags filing in the little paper box.
Feature :
1 International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2 Adopt human-machine operation system.
3 Automatically stop when machine is overload.
4 Automatically reject lacking of package product and leaflet.
5 Automatically display trouble, Alarm and count finished products.
6 Stable performance, operation is easy
Main technical parameters:
Item |
Parameters |
|
Encasing speed |
30-100 boxes/min |
|
Box |
Quality requirement |
250-350g/㎡(Base on carton size) |
Dimension range |
(70-180)mm×(30-85)mm×(14-50)mm |
|
Leaflet |
Quality requirement |
60-70g/m2 |
Unfolded leaflet specification |
(80-250)mm×(90-170)mm |
|
Fold range |
(1-4)Fold |
|
Compressed air |
Working pressure |
≥0.6mpa |
Air consumption |
120-160L/min |
|
Power supply |
220V 50HZ |
|
Main motor power |
0.75kw |
|
Machine dimension(L×W×H) |
3100mm×1100mm×1550mm |
|
Machine weight |
about1400kg |
Contact Person: Mr. Tom
Tel: +852 69439003
