10L/Min 3200kg High Speed Auto Cigarette Packing Machine Hot Melt Adhesive Sealing

10L/Min 3200kg High Speed Auto Cigarette Packing Machine Hot Melt Adhesive Sealing

Features:

1. Automatic program operation

2. Smoke article according to the size change, could quickly adjust parts in all directions with digital display position

3. Control points, and reveal faults, easy to operate

4. Adopt rotary encoder and the real-time control of the whole machine precision CAM assembly with high reliability

5. Easy shifting between two packing rates of 50cartons/case and 25cartons/case

6. Loading process video detection, to avoid the lack of a phenomenon

7. Low box blank library with the method of vertical stacking, storage volume is more than 3 times type Yp18 sealing machine

8. Cooperating on the low of AGV car automatic box blank device is available for matching parts

Sealing mode:

1. Hot melt adhesive sealing

2. Tape sealing

3. Combination sealing

Optional:

1. Hot melt adhesive system

2. Cold glue system

3. Vacuum pump

4. YP11A. 81 type horizontal collecting machine

5. Automatic box on the device

The main technical parameters:

1. Rated production capacity: 6 / min (note: 50 / box)

2. Packing size (L * H * B) :

Biggest: 610 mm * 260 mm * 470 mm

Minimum: 290 mm * 230 mm * 440 mm

3. Electrical system rated power: 8.623 kW

The host 4.6 kW

The hot glue machine 4.023 kW

4. Compressed air consumption: 10 l/min

Pressure: 0.6 MPa

5. Vacuum pump flow: 40 m3 / h

Pressure: - 0.08 MPa

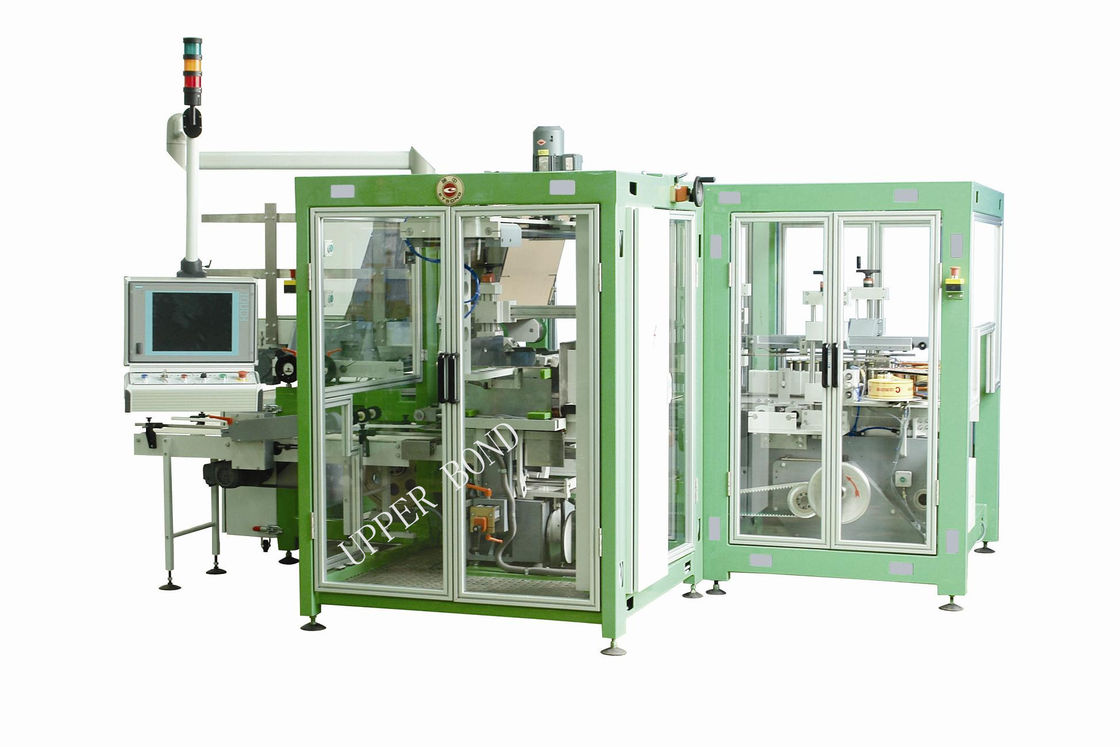

Picture:
