Polypropylene BOPP Packing Machine 380V 60HZ With Siemens PLC

Polypropylene BOPP Packing Machine 380V 60HZ With Siemens PLC
Polypropylene BOPP Packing Machine 380V 60HZ With Siemens PLC

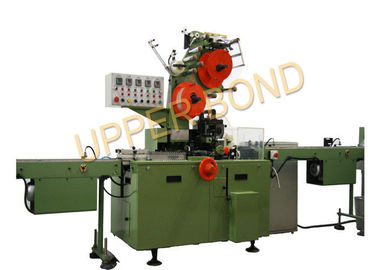

Large Image :  Polypropylene BOPP Packing Machine 380V 60HZ With Siemens PLC

Product Details:

Place of Origin: China
Brand Name: UPPERBOND
Model Number: Molasses cigarette packing machine

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 30Works Dates
Payment Terms: TT
Supply Ability: 1000sets/per year
Detailed Product Description
Highlight:

cigarette making machine

,

cigarette machine tobacco



Polypropylene BOPP Packing Machine 380V 60HZ With Siemens PLC





Product  Information:



This machine is used to packing the BOPP film outside the packet paper, it can also be used in packing Molasses Tobacco.



Technical Parameters:



Item

Packet Wrapper

1.Max Speed

180-180 Packets/Min

2.Working Speed

180-180 Packets/Min

3.Text Displays

YB43

4.Technical Documents

English only

5.PLC

Siemens

6.Ambient Temp

25±5℃

7.Ambient RH

55%~65% RH

8.Color

Green

9.Year two class preparation

According to user needs to order

10.Compressed Air Needs

pressure     >0.60Mpa
flow         >48
/h

11.Diameter Supply Line

Inside diameter 8-10mm hose

12.Power

380 V, 3 Phase 60 HZ

13.Connected Load

3.6KW

14.Safety Loop Voltage

24 Volt

15.Need for Neutral Wires

Yes,

16.BOPP

1. nature: Polypropylene BOPP for heat-sealed, can be stretched in vertical two ways. The specification should conform to the Nation Standard GB/12026-89.

2. dosage       19-23g/

3. width          118mm

4. diameter of bobbin core  ∮75

17.Tear strip

1. Nature of Anti-stretch is strong, force of break no less than 10N, plain and straight, without spirals.

2. width        2.5mm

3.diameter of core  ∮28mm

4. dosage     40-70g/

18.Size

87.5×56×23.7mm
