RYO Roll Your Own Cigarette Packing Machine ±3g Tobacco Tolerance

RYO Roll Your Own Cigarette Packing Machine ±3g Tobacco Tolerance

Line unit

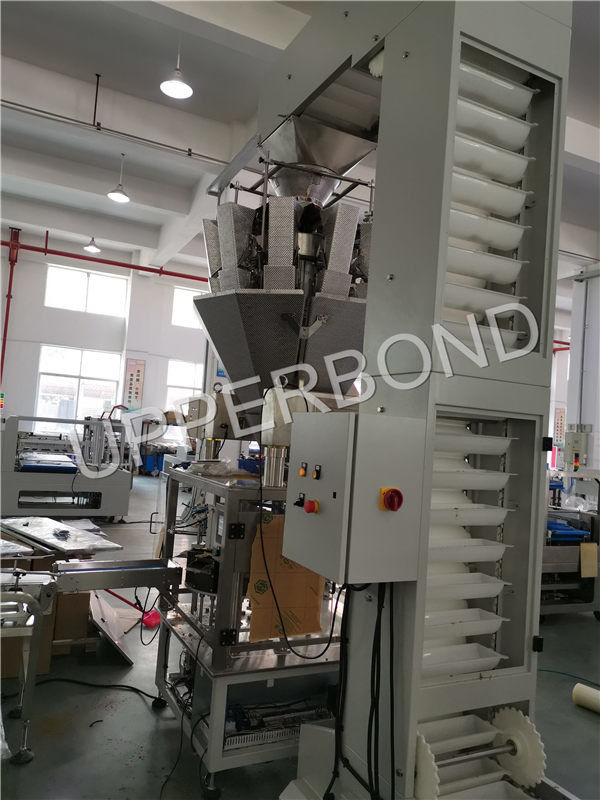

Threshing Feeder + Z-Lifter + Combined Weigher + Auto-Forming Compressing Pouch Packer + Weight Control Device

Combined scal

Material in contact with product: Diamond plate

The feeding chute is a 60°angle, so the material falls more smoothly.

Hat-shaped thresher to ensure that materials do not stay in the thresher center.

Using both positive and negative adjustable rotating main vibrator, ensuring the materials enter the line vibrating plate evenly.

The thickened cast aluminum center brancket enhances the strength of the machine, shortering the weighing stabilization time.

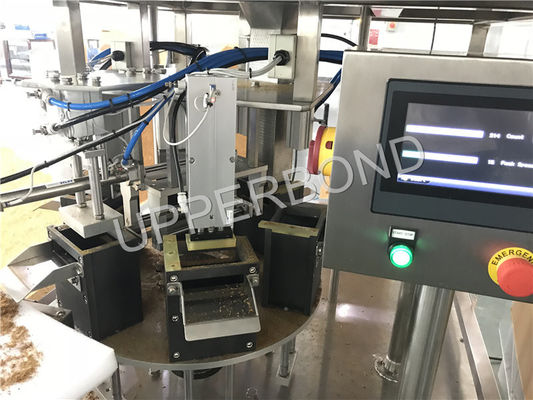

Auto-Forming Feeder

Custom mould according to product size.

The weighed tobacco are put into the mould and extruded to target shape.

Manual feeding of bags.

Automatic tobacco filling and finished product pushing out.

Features

1. PLC process control, advanced touch HMI, and photoelectric automatic positioning tracking system, altogetherly make operation of the whole machine simpler and more completed. It helps food packaging industry improve production efficiency, reduce labor intensity, and improve packaging grade.

2. Equipped with weight control device at the output end, to reject finished pouch which is out of tolerance.

3. The main body of equipment is mainly made of high-quality 304 stainless steel and aluminum alloy materials. The machine is equipped with safety protection doors.

Parameter

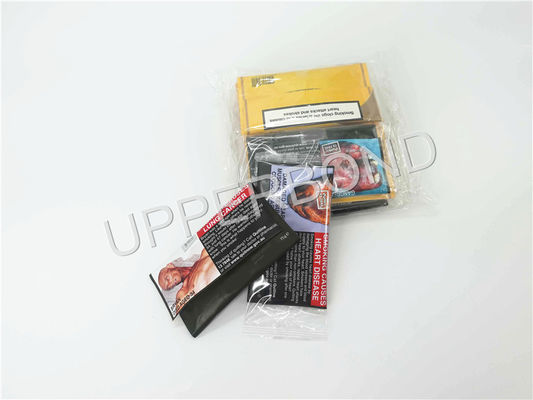

Finished Bag
