BH-TP2 Capacity 30 pouch/min Cigarette Packing Machine RYO Line

BH-TP2 Capacity 30 pouch/min Cigarette Packing Machine RYO Line

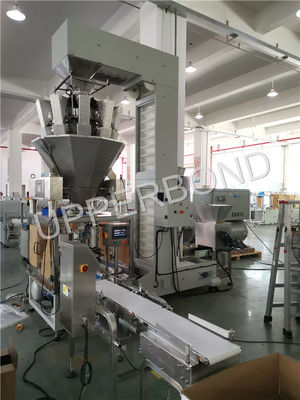

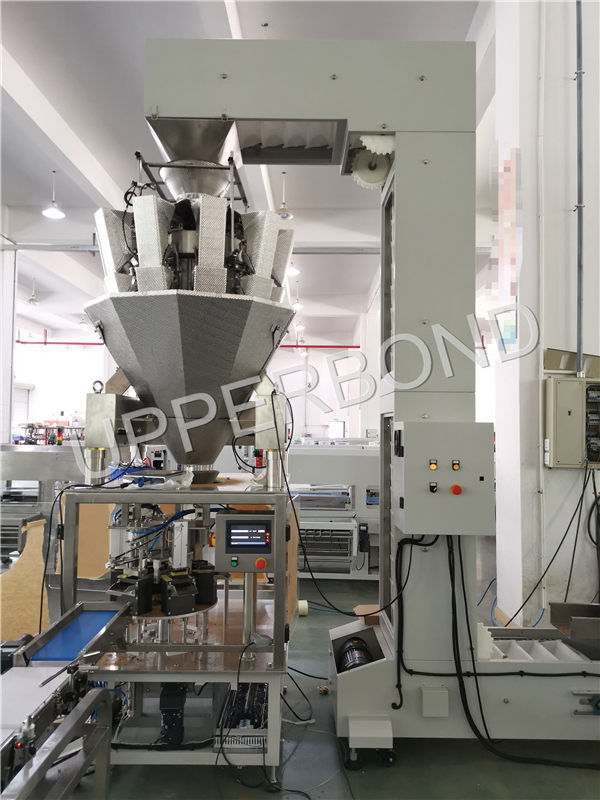

Line unit

Threshing Feeder + Z-Lifter + Combined Weigher + Auto-Forming Compressing Pouch Packer + Weight Control Device

Threshing Feeder

Tresh input compressed tobacco to make it fluffy.

Volume: 80 L

Material: 304 Stainless Steel

Z-Lifter

Capacity: 1.5-3 cbm/h

Voltage:220 V,50-60 Hz

Power: 1.5 KW

Material: 304 Stainless Steel

Combined Weigher

Material in contact with product: embossed plate.

The feeding chute is in 60° angle, so the material falls more smoothly.

Hat-shaped thresher to ensure that materials do not stay in the thresher center.

Using both positive and negative adjustable rotating main vibrator, ensuring the materials enter the line vibrating plate evenly.

The thickened cast aluminum center brancket enhances the strength of the machine, shortering the weighing stabilization time.

Features

1. This packing line is customized for tobacco pouch filling. As the tobacco is very slim, and compressed in the carton, so it is easily intertwined together, will not flow well on the machine, so we put threshing unit on the feeder system, to make tobacco fluffy.

2. As tobacco is expanded, so it is difficult to loading much in the pouch without compressed. The Auto-Forming Compressed device is customzied for tobacco packing, which will compress the tobacco into shape, then packed into the pouch easily.

3. Equipped with weight control device at the output end, to reject finished pouch which is out of tolerance weight.

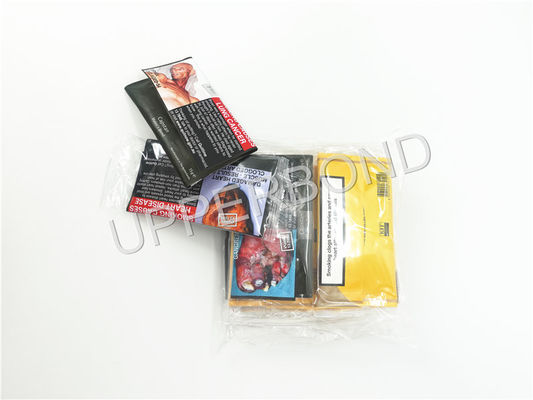

Finished Product
