Protos 7000 cig/min Cigarette Making Machines Automatically With King Size

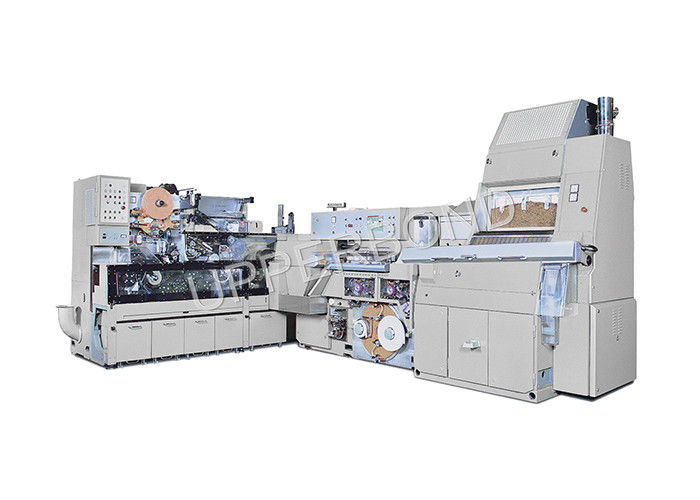

Large Image : Protos 7000 cig/min Cigarette Making Machines Automatically With King Size

Product Details:

Place of Origin:	China
Brand Name:	UPPER BOND
Model Number:	PROTOS 70-CH

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	WOODEN CASES
Delivery Time:	30Works Dates
Payment Terms:	T/T
Supply Ability:	80 SETS/YEAR

Contact Now

Detailed Product Description

Capacity:	7000cig./min	Rod Speed :	490m/min
Cigarette Circumference :	21.7mm-28.3mm	Cigarette Length:	65mm-120mm
Filter Rod Length:	10mm-25mm(1rod/6) 15mm-35mm(1rod/4)	Total Power :	47KVA
Dimension(L× W× H) :	6740mm×6030mm×2600mm(U)	Total Weight:	10080kg
Highlight:	Cigarette Making Machines , 7000 cig/min Cigarette Making Machines , King Size Cigarette Making Machines

Protos 7000 cig/min Cigarette Making Machines Automatically With King Size

Introduction

The machine consists of Model PROTOS 70-CH Cigarette Making Machine and Filter Assembling Machine.MachineCapacity 7000cig./min.

PROTOS 70-CH Cigarette Making and Filter Assembling Group consists of Model PROTOS 70-CH Cigarette Making Machine and Filter Assembling Machine. Its downstream device can be Tray Filler or linkage equipment to packer, with the features below:

1. High speed: the production speed of cigarette can reach 7000cig/min, rod speed is 490m/min.

2. Top quality of cigarette : it performs the functions of inspecting air leakage, loose ends, soft and hard spots and rejecting the unqualified cigarettes automatically.

3. Complete trouble- shooting system: it has the effects of diagnosis, alarm, displaying the faults then stop, analyzing and adding up the faults automatically.

4. Perfect control system for cigarette weight: it can offset automatically and save cut tobacco by use of target weight.

5. Automatic production process system: it has the functions of monitoring, analysis , statistics, handling to the processing datum and outputting in forms automatically.

Technical Parameters:

Rod speed	490m/min
Production Capacity	7000cig./min
Cigarette Standard Diameter	7.8±0.1mm
Cigarette Circumference	21.7mm-28.3mm
Cigarette Length	65mm-120mm
Filter Rod Length	10mm-25mm(1rod/6) 15mm-35mm(1rod/4)
Total Power	47KVA
Dimension(L× W× H)	6740mm×6030mm×2600mm(U)
Outside Dimension	8600×6700mm
