380V Cigarette Making Macines And Plug Assembling Combination Machine

large.img.alt
small.img.alt

Large Image :  380V Cigarette Making Macines And Plug Assembling Combination Machine

Product Details:

Place of Origin: China
Brand Name: China Tobacco
Model Number: ZJ114

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: WOODEN CASES
Delivery Time: Five months
Payment Terms: T/T, L/C
Supply Ability: 100 SETS/YEAR
Detailed Product Description
Color: Green Model: ZJ114
Capacity: 5000cig/min Power: 380V
Weight: 9500kg Original: China
High Light:

cigarette making machine

,

cigarette packing line

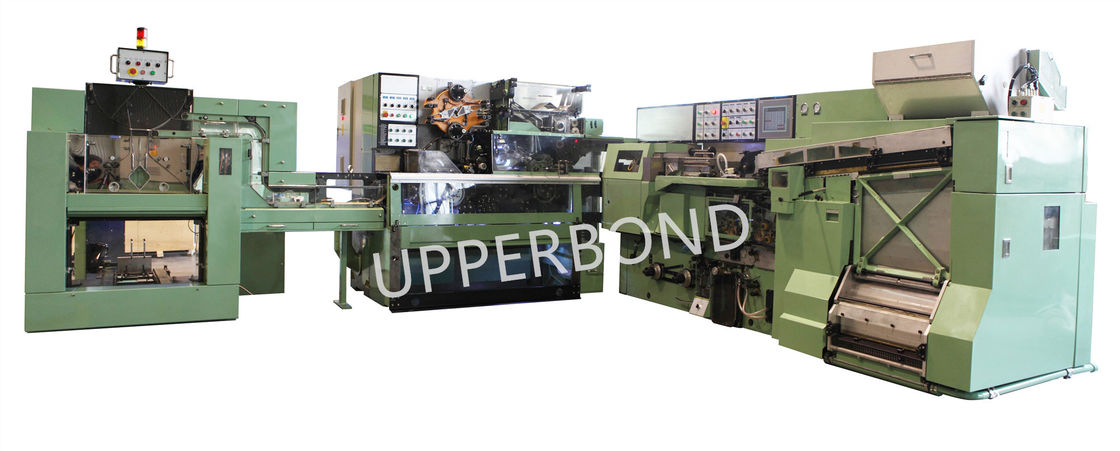

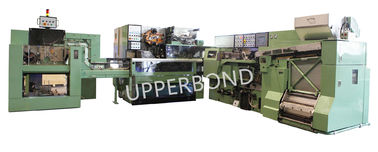

ZJ114 Cigarette Making and Plug Assembling Combination Machine







Introduction:





ZJ114 combination consists of three machines: YJ114 cigarette maker, YJ214 plug assembler and YJ35D tray filler. It can be customized to produce king size cigarettes, superslim cigarettes or kreteks with different size. The cigarette weight can be inspected and the bad cigarettes can be rejected online automatically. This type of combination has been sold to Asia, Africa, Europe and North America, widely popular in the international market.







Technical Features:



1. The cigarette cutting system uses the double-knife single-cutting system with lower-rising temperature and lower noise. This ensures the good quality of the cigarette cut.

2. The complete suction system and the high air pressure system.

3. The hopper system adopts AC servo motor to directly drive the tobacco cutting system. The timing belts are used instead of the gears, so the tobacco-feeding evenness is greatly improved and the maintenance cost is reduced as well.

4. It adopts AC servo driving system that simplifies the mechanical structures and reduces the failure and maintenance cost, and improves the transmission precision.

5. Electric control system:

    control center: it adopts the SIMENS PLC S7-300 series.

    weight controller: the microwave weight control system is adopted to avoid any harm to people.

    man-machine interface: the SIMENS touch screen provides friendly man -machine interface, which displays the machine status and production data precisely. It is also convenient to modify the system parameter and check out failure.







 Main Technical Parameters:



Output:

5000cig/min for the king size cigarettes

3500cig/min for the superslim cigarettes

Cigarette parameter

Filter-cigarette length:65- 110±0.5mm

Tobacco rod length: 55-90mm
Cigarette diameter: φ5.4-9.0mm

                                                                                                                                            Outside dimensions





Cigarette maker : 3630× 1270 × 1870mm

Plug assembler: 3340×1340× 1820mm

Tray Filler : 2350×2400× 2100mm

Power supply: 380V ± 10%(3phases)

Total weight: 9500kg
