High Efficiency Cigarette Making Machines Green Lower Noise PLC

large.img.alt
small.img.alt

Large Image :  High Efficiency Cigarette Making Machines Green Lower Noise PLC

Product Details:

Place of Origin: China
Brand Name: UPPER BOND
Certification: CE
Model Number: MK9

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: WOODEN CASES
Delivery Time: 30Works Dates
Payment Terms: T/T, L/C
Supply Ability: 100 SETS/YEAR
Detailed Product Description
Output: 5000cig/min Frequency: 50Hz
Control Center: SIEMENS PLC S7-300 Series Cigarette Size: King Size,Slim Size,Super Slim Size
Filter-cigarette Length:: 65 ~110± 0.5 Mm 3630× 1270 × 1870mm: 3630× 1270 × 1870mm
High Light:

cigarette packing line

,

cigarette packaging machine

High Efficiency Cigarette Making Machines Green Lower Noise PLC





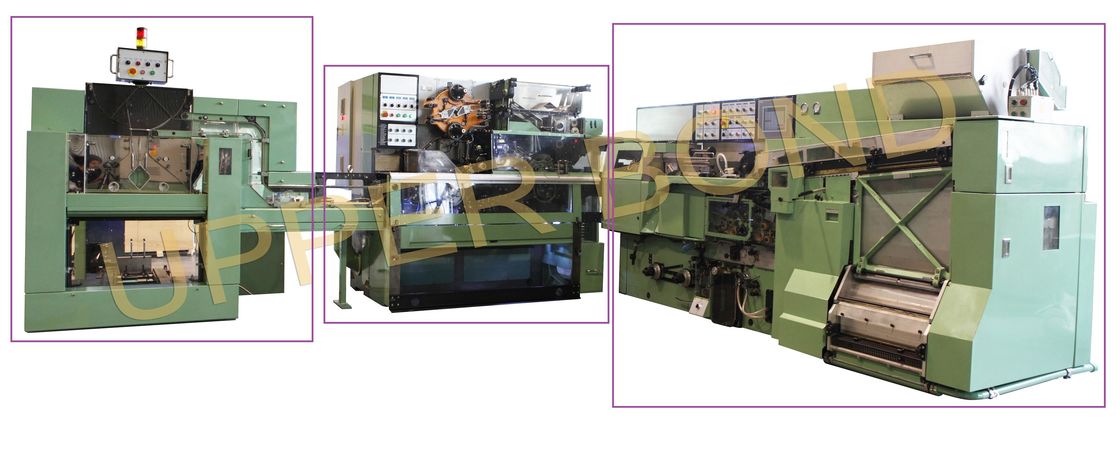

The machine is combited by MK9 cigarette making machine,MAXS filter rod assembling machine and HCF80 tray filler.



The hopper system adopts AC servo motor to directly drive the tobacco cutting system, and it cancels the variable speed unit; in the meantime, the timing belts are used instead of the gears, the tobacco-feed evenness is improved greatly.Pneumatic control is adopted instead of the magnetic control, and the stability of the electrical heater is much higher.The improved rod feed-in device can not only perform the function of breaking rod, , it but also becomes the support of the subsequent rod. After breaking the rod, it avoids the failure of rod breakage. The cigarette tip turner of MAX70 machine is adopted to increase the stability of the performance of turning the cigarette tip.The material of the original catcher shield is nonmetal; it is prone to be worn down. The improved material one is metal, with greater endurance.



The control center adopts the PLC of SIEMENS S7-300 SERIES. It relies on PRFIBUS-DP to transmit the signals between the main PLC and valve terminal and AC servo motor.

  1. SIEMENS touch screen provides friendly man-machine interface, which displays the machine status and production data clearly. It is also convenient to adjust the system parameter and check out the failure.
  2. PASSIM80 photoelectric empty-tip inspector is used to automatically inspect and reject the empty-tip cigarettes more precisely and reliably.
  3. cigarette weight inspectionthe microwave weight control system is adopted instead of the radiation, to avoid any harm to people.

The original pneumatic system has many control circuitries and the pneumatic parts are easy to be aging. The improved system utilizes centralized and integrated electromagnetic valve terminal. And internationally famous brand of pneumatic components (FESTO) are adopted, overcoming the original limitation and increasing its stability and reliability.



In order to meet the international demand of the small-sized and medium-sized factory, we have successfully improved MK9/MAX-S/HCF80 cigarette making and plug assembling combination. The Upgraded MK9/Max-s Cigarette Making Combination adopts Servo drive, PLC controller, industrial bus, touch screen, and valve terminal. Its speed has reached 5,000cig/min. Through our development of many parts, its stability and capability have been greatly improved. So far, it has been exported to America, Canada, Germany, Czech, Malaysia and Bosnia & Herzegovina. Nowadays MK9-MAX combination is our main product for export and enjoys wide popularity in the world.



AC servo driving system is adopted to improve the driving system

We utilize the electrical gear function of AC servo driving system, and improve greatly on the driving system of the combination. We cancel the following gear boxes: cut-off, taper drum, suction drive, hopper drive, linkage parts between cigarette maker and plug assembler, instead we use servo motors to  drive above-mentioned parts. So the mechanical frameworks are simplified, the failure and the maintenance cost is reduced, and the driving accuracy is improved.





 Main Parameters:



Output: 5000cig/min for the king size cigarettes

Frequency: 50Hz

3500cig/min for the super slim cigarettes

Total power: 50KVA

Cigarette parameter

Outside dimensions

Filter-cigarette length: 65 ~110± 0.5 mm

Cigarette maker : 3630× 1270 × 1870mm

Tobacco rod length: 55 ~90 mm

Plug assembler: 3340×1340× 1820mm

Cigarette diameter: φ 5.4 ~φ 9.0 mm

Tray Filler : 2350×2400× 2100mm

Power supply: 380V ± 10%(3phases)

Total weight: 8600kg
