Customized 50Hz Tobacco Making Machine 50KVA MK9 , MAXS

Customized 50Hz Tobacco Making Machine 50KVA MK9 , MAXS
Customized 50Hz Tobacco Making Machine 50KVA MK9 , MAXS

Large Image :  Customized 50Hz Tobacco Making Machine 50KVA MK9 , MAXS

Product Details:

Place of Origin: China
Brand Name: UPPER BOND
Model Number: MK9

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: WOODEN CASES
Delivery Time: 30Works Dates
Payment Terms: T/T
Supply Ability: 100 SETS/YEAR
Detailed Product Description
Highlight:

cigarette packing machines

,

cigarette manufacturing equipment



Customized 50Hz Tobacco Making Machine 50KVA MK9 , MAXS





Description

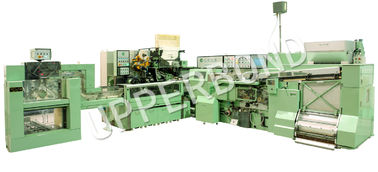

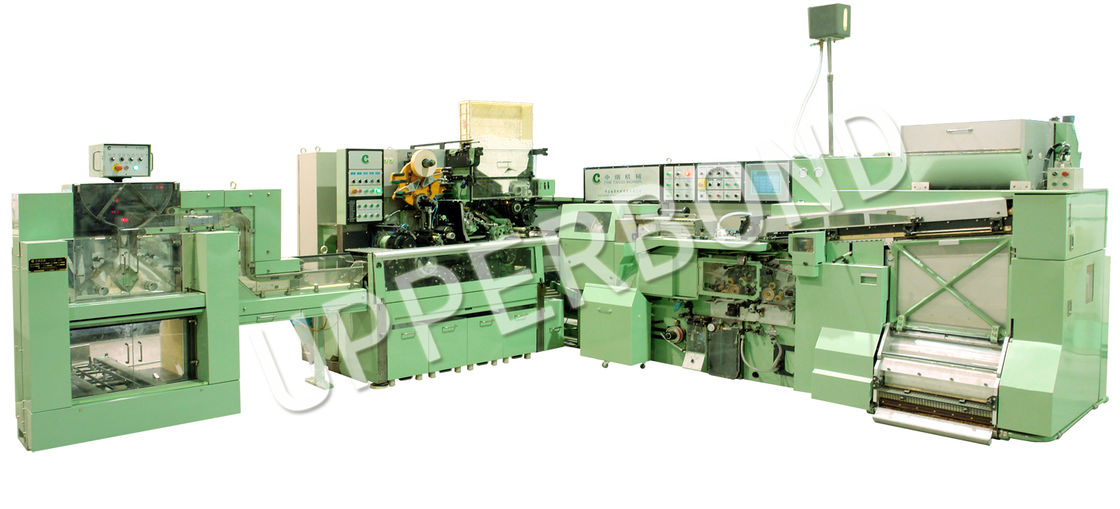

This combination consists of three machines: MK9 tobacco maker, MAXS plug assembler and HCF80 tray filler. It can be customized to produce king size cigarettes, super slim cigarettes or kreteks with different size. The cigarette weight can be inspected and the bad cigarettes can be rejected online automatically. This type of combination has been sold to Asia, Africa, Europe and North America, widely popular in the international market.





Highlights:



1. The cigarette cutting system uses the double-knife single-cutting system with lower-rise temperature and lower noise. This gives the very good quality of the cigarette cut.

2. The complete suction system and high air pressure system .

3. The hopper system adopts AC servo motor to directly drive the tobacco cutting system. The timing belts are used instead of the gears, so the even tobacco-feeding is greatly improved and the maintenance cost is reduced as well.

4. It adopts AC servo driving system that simplifies the mechanical structures and reduces the failure and maintenance cost, and improves the transmission precision.

5. Electric control system:

◆ control center: it adopts the SIEMENS PLC S7-300 series.

◆ weight controller: the microwave weight control system is adopted to avoid any harm to people.

◆ man-machine interface: The SIEMENS touch screen provides friendly man-machine interface, which displays the machine status and production data precisely. It is also convenient to modify the system parameter and check out the failure.





Main Parameters :



Output: 5000cig/min for the king size cigarettes

Frequency: 50Hz

3500cig/min for the super slim cigarettes

Total power: 50KVA

Cigarette parameter

Outside dimensions

Filter-cigarette length: 65 ~110± 0.5 mm

Cigarette maker : 3630× 1270 × 1870mm

Tobacco rod length: 55 ~90 mm

Plug assembler: 3340×1340× 1820mm

Cigarette diameter: φ 5.4 ~φ 9.0 mm

Tray Filler : 2350×2400× 2100mm

Power supply: 380V ± 10%(3phases)

Total weight: 8600kg




Making Process Requirements:



1, Ambient conditions,

Temperature: 20℃--30℃

Relative humidity: 62%--68%

2, Paper bobbin

Tensile strength ≥0.85KN/m

Extensibility >1.6%

Humidity: 6%±1.5%

Joint number <1/1000 m

3, Width: 48±0.3 mm

Thickness: 0.04mm~0.05 mm

4, Cut tobacco

Grade: A

Humidity: 12.5%±0.5%

5, 5.5bar

6, Viscosity of VPA

For the maker: 2500mPa.s-5000mPa.s

For the assembler: 5000mPa.s-10000mPa.s
