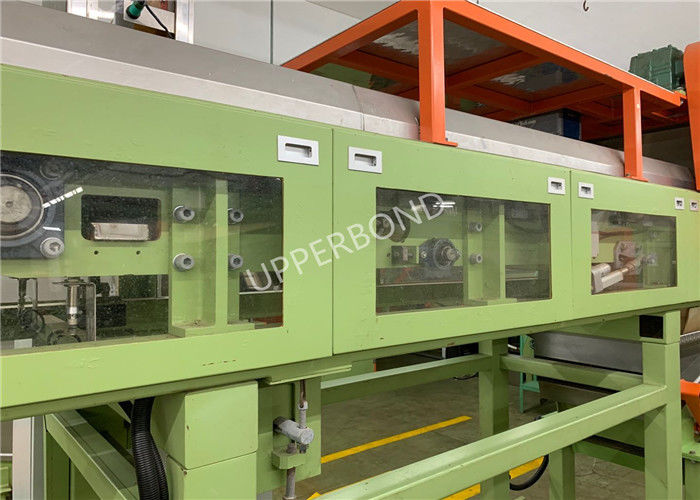

Electronic Weighing Conveyor Tobacco Processing Line PLC Control With Touch Screen

C (J,K,P) 6E Series of Electronic weighing conveyor Tobacco Processing

Application:

This product is a dynamic weighing machine.It is used in the tobacco primary processing line and threshing and redrying line for achieving accumulating metering flow rate control,materials blending and quantitative control.

Features:

- Adoption of direct stress transfer structure ,featuring more direct and reliable stress transfer and good stability of whole machine.

- Conveying and weighting frame adopting cantilever support,more convenient for belt replacement within 30 minutes.

- The sensor installed on the two sides of frame,more convenient for commissioning and replacement.

- Unique tension device.Advance-stroke and return-stroke tension rope in parallel to make the zero point stable,movable counter weight on the tension hammer to resolve the problem such as deflection load and off tracking of belt.

- Double carrier roller whit strong anti-interference ability.

- High metering accuracy.Direct stress ,double carrier roller and no-weighing frame structure for eliminating the influence on metering accuracy due to horizontal component force arise from the belt movement ,the effective length of weighting parts is also favorable factor for increasing metering accuracy.

- Wide adjustment range for blending ratio.

- PLC control with touch screen and HMI for convenient operation and a=maintenance.

Automatic deflection,fault recording ,modula fault detecting ,weight signal fault detecting ,speed signal fault detecting,frequency inverter fault detecting ,electrical push rod position displaying ,automatic coefficient calculation of weighing calibration,applicable for diversified communication and interface.

Technical Specifications:

- Rated capacity: 300kg/h~1200kg/h

- Width of conveying belt:B=600mm,800mm,1000mm,1200mm,1400mm,1600mm,1800mm

- Distance between the centre of drive rollers:Lo=2780mm;Lo=3000mm

- Length of metering section :L=1000mm

- Sensor range:G=4*6kg, 4*10kg, 4*30kg

- Metering accuracy: ≤0.5 %

- Control accuracy: ≤1 %
