PLC And Touch Screen Tobacco Cutting Machine Tobacco Cutter Shredder

New Tobacco Shredding Machine Cutting Equipment Tobacco Cutter Shredder Machinery

Introduction:

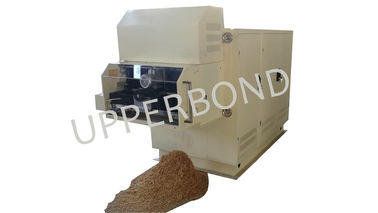

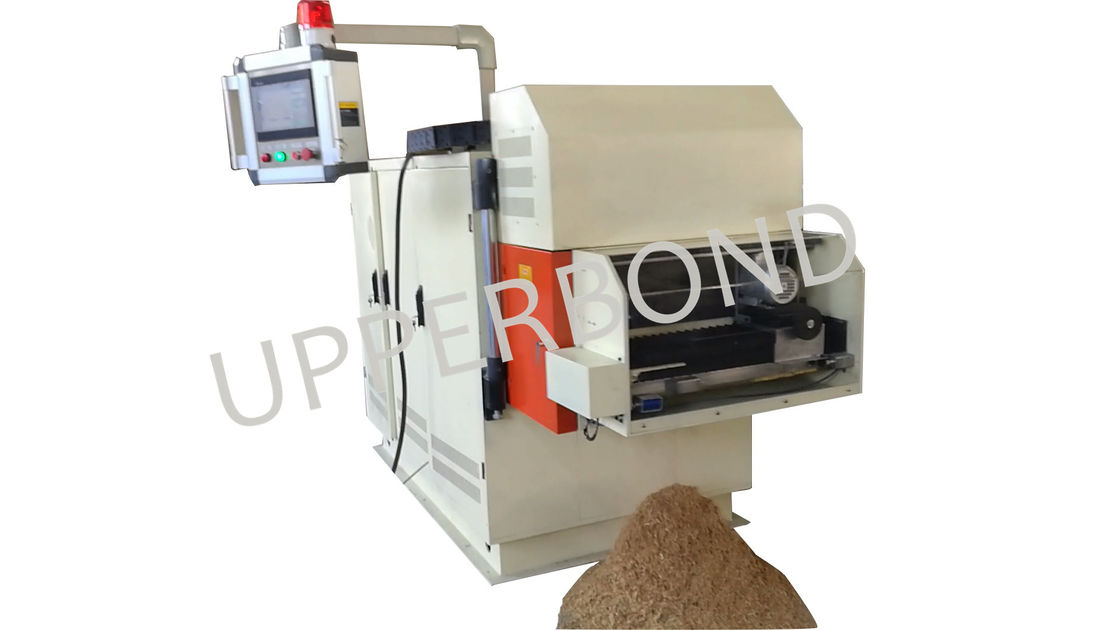

CT-1000 cutting machine is our company independently developed special machine for cutting

the vegetables, tea, medicine and so on. The CT-1000 cutting machine comprises a body, feeding

chain, compaction chain, cutting drum, automatic blades sharpening device, automatic blades

advancing device and control system. This machine adopts our innovative proprietary technology

and servo drive. Variable frequency control, plc and touch screen automatic control system, it has

multi-parameter setting and multiple working mode to meet different production need

Specification:

1 Cutting width mm : 0.15 to 1.2 Adjustable

2 Reference bulk density of materialKg/m3 110

3 Material compression ratio 5

4 Rated capacity (0.8mm cut width) 1000 Kg/h Relating to material characteristics and cutting width

6 Mouth piece height : 60mm Max. Height 80mm

7 Mouth piece width: 400mm

8 Cutting drum diameter:400mm

9 Number of blades :6

10 Cutting drum speed: 100-350 Rpm Frequency control

11 Compress air : 0.6 MPA

12 Blade life: 140 Hr When cutting drum 350rpm

13 Grinding wheel life : 52 Hr Adjustable

14 Installed power : 12.85 KW

15 Control mode Servo drive + frequency speed control + plc+ touch screen

16 Weight (approx.): 4500KG

17 Dimensions : 2567*1116*1660mm

Main technical parameters:

1.4. Operating conditions

a) Ambient temperature :10～40℃

b) Relative humidity:≦80%

c) Above sea level:≦2000m

d) Power supply:3n～50hz,380v±38v；50hz±1hz

e) Compressed air:≧0.6mpa,0.4m3/min,should be dried and filtered.

f) Incoming material:Tea / vegetables / herbs:Moisture content: Between 18% to 28%,no

caking, no metals and other hard impurities.

g) Operators should be trained, and in strict accordance with the instructions for operation.
