Smoke Free Mouth Smoking Cigarette Tobacco Equipment 380V

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Smoke Free Mouth Smoking Cigarette Tobacco Equipment 380V

Product Details:

Place of Origin: CHINA
Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 60 Works Dates
Supply Ability: 1000sets/year
Detailed Product Description
Condition: New Color: Metallic
Voltage: 380V Port: Guangzhou
Material: Metallic Production Capacity: 180pac/min
High Light:

tobacco packing machine


molasses machine



Smoke Free Mouth Smoking Cigarette Tobacco Equipment 380V



Introduction :


Mouth smoking cigarettes, also known as Snus, smoke free cigarettes, is a new variety of tobacco products.


It's a smokeless tobacco, so It does not produce smoke, it is much more healthier than cigarettes, and it does not affect others, also not subject to smoking restrictions, so it is an ideal substitute for cigarettes.

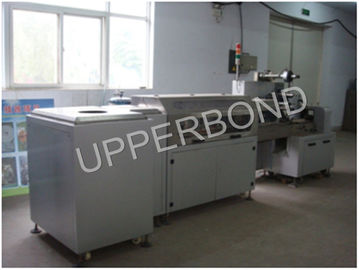

Production line included:


1.Material pulverizer

The pulverizer makes use of the relative motion between the movable tooth disk and the fixed tooth disk to crush the material through tooth impact, friction and impact between the materials



2.Three-stage disk vibrating screen

The vibrator of the screen drives the vibrating screen together to perform the directional jumping movement. The material smaller than the aperture of the screen surface falls to the lower layer through the screen hole and becomes the material under the screen. The material larger than the aperture of the screen surface is discharged from the discharge port after continuous jumping movement.


Different diameters of screen particles are obtained by using different diameters of screen hole .



3.material mixing and preloading equipment

Manually add weighied materials. The stirring motor drives the mixier shaft for material mixing. Various ingredients are added into the batching tank through metering pump for metering and feeding, ultilizing the high pressure air to increase the atomization of the feed liquid, so that the ingredients can be evenly sprayed on the surface of the material while stirring. The way of discharging is manually rotate the handwheel to make the material box discharge material. And if the material discharge is not completely, manual assistance discharge is necessary.


4.Horizontal Fermenter

Horizontal double spiral mixing, can efficiently and fully mix the material.

The new tank bottom valve, no dead ends, complete discharge.

With independent steam generator and cooling device, cooling speed is fast. Reduce the cost of the heat conduction oil.

Large size manhole device for easy cleaning and cleaning of tanks


5. Snus high speed packing machine

High speed, stable operation at 180 pack.

Four sets of servo system drive, with electronic gear instead of the traditional mechanical transmission chain.

The feeding device is added to the material bin to reduce the workload of the people.

The new transverse seal cutting structure design makes the sealing more beautiful.

Double side sawtooth cutter, high speed pneumatic drive to ensure complete cutting.


6.Snus secondary packing machine

In order to ensure the health safety and long-term storage requirements of mouth smoking cigarettes, a composite film was added to the outer packaging of the mouth smoking cigarettes to reduce the influence of external factors such as air, sunlight and so on.

Various of color patterns are made on the outer surface of the composite film, which enhances the attraction of the product.

Smoke Free Mouth Smoking Cigarette Tobacco Equipment 380V 0
