Product Details:
Payment & Shipping Terms:
|
| Working Rate: | 8-10Cartons/ Min | Efficiency: | 90% |
|---|---|---|---|
| Power Supply: | Voltage:380volt±10% Frequency:50Hz Total Rated Power:9.61kW | Air Supply: | Compress Air: Pressure>0.60Mpa Flow >48m3/h |
| Environmental Condition: | Ambient Temperature: 25±5℃ Relative Humidity: 55%～65% | Package Size: | 95*55*20±0.5mm |
| Manner For Packing: | Vertical | Size Of Carton(L×W×H): | 303×97×47mm |
| High Light: | tobacco filling machine,molasses machine |
||

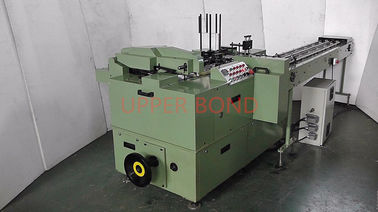

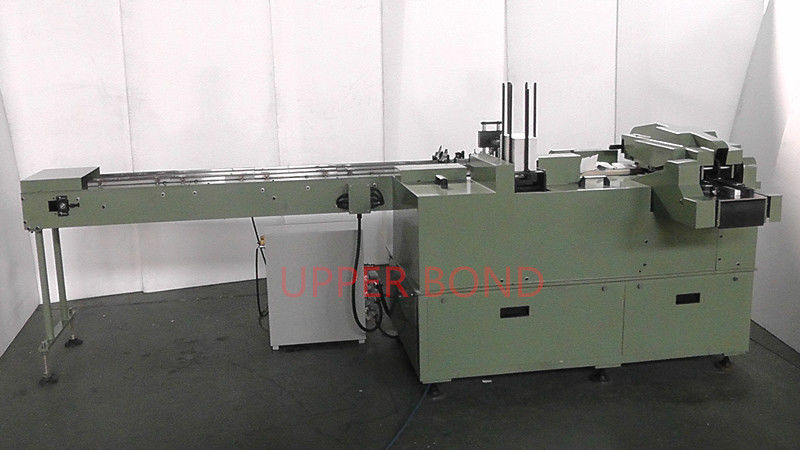

Main Engine for Hard Packet Vertical Overwraping Packing Line for Molasses Tobacco
Application:
This product is used for wrapping of cigarette packets and cartons and it can be distinguished vertical package In addition, you also can cover the otherproduct package, just like the medicine, food and so on.
PLC tough screen makes it smart and efficient when it works and stable during the operation. Under the electronic system control, the chance making mistake will be reduced to the minimum. If you own our machine, I think your cost will be decreased and save the energy.
Characteristic:
Technical Parameters:
| Working Speed | 8-10 Cartons/ min |
| PLC | Siemens |
| Ambient Temp | 25±5℃ |
| Ambient RH | 55%~65% RH |
| Compressed Air Needs |
Pressure >0.60Mpa Flow >48 m3/h |
|
Packing Style |
Traditional & Vertical |
| Power | 380V, 3Phase 60HZ |
| Connected Load | 9.61 |
| Carton Size |
303×97×47mm |
All above these are the major information about this machine, if you want to know more about it you can contact us when you feel free. Your inquiry will be answered within 24 hours, we will try our best to help you.
Thanks.
Package and Shipping
1, Package: Wooden Cases and others.
2, Shipping: We will deliver the goods within 30 works dates in general.Shipping company can be required as your demand.
1. How About the Installation & Adjustment?
After the equipment arrived at the customer’s site, customers are responsible for unpacking and arranging the equipment in reference to the placement drawing or under our install-adjust technicians’ guidance. Costs of our staffs are decided at last.
2. How about the "Quality Assurance"
We are responsible for the faults and damages of the production line caused by our design, technology, manufacture, installation, adjustment and material defect etc.The warranty period is 12 months after acceptance check of the production line. If there is any different between the furnished equipment in the customer’s factory and the equipment concerned in the contract, the users have the right to pass the inspection book to the legal department to claim for compensation to our company within goods warranty period.
3. How about the Warranty?
We offer 12 months maintenance period to the problems that caused by our design, manufacture, and material quality, and offer the relevant parts and effective services for free if the problems was caused by above reasons. We will offer a life-long technical support, after service for customers.
