Hard Molasses Tobacco Box Packing Machine with PLC Touch Screen

Hard Molasses Tobacco Box Packing Machine with PLC Touch Screen
Hard Molasses Tobacco Box Packing Machine with PLC Touch Screen

Large Image :  Hard Molasses Tobacco Box Packing Machine with PLC Touch Screen

Product Details:

Place of Origin: China
Brand Name: BINHAO
Certification: CE
Model Number: SPL

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiaton
Packaging Details: Wooden Package
Delivery Time: 30 Works Dates
Payment Terms: L/C, T/T,
Supply Ability: 10 Sets per Month
Detailed Product Description
Working Rate: 8-10Cartons/ Min Efficiency: 90%
Power Supply: Voltage:380volt±10% Frequency:50Hz Total Rated Power:9.61kW Air Supply: Compress Air: Pressure>0.60Mpa Flow >48m3/h
Environmental Condition: Ambient Temperature: 25±5℃ Relative Humidity: 55%~65% Package Size: 95*55*20±0.5mm
Manner For Packing: Traditional Or Vertical Size Of Packet (L×W×H): 95*60*23.5mm
Size Of Carton(L×W×H): 303×97×47mm Installation Dimension (L×W): 10300×4200mm
Machine Weight: 4000kg
High Light:

tobacco filling machine


molasses machine

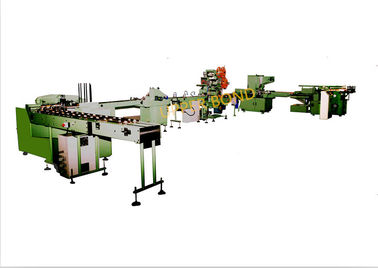

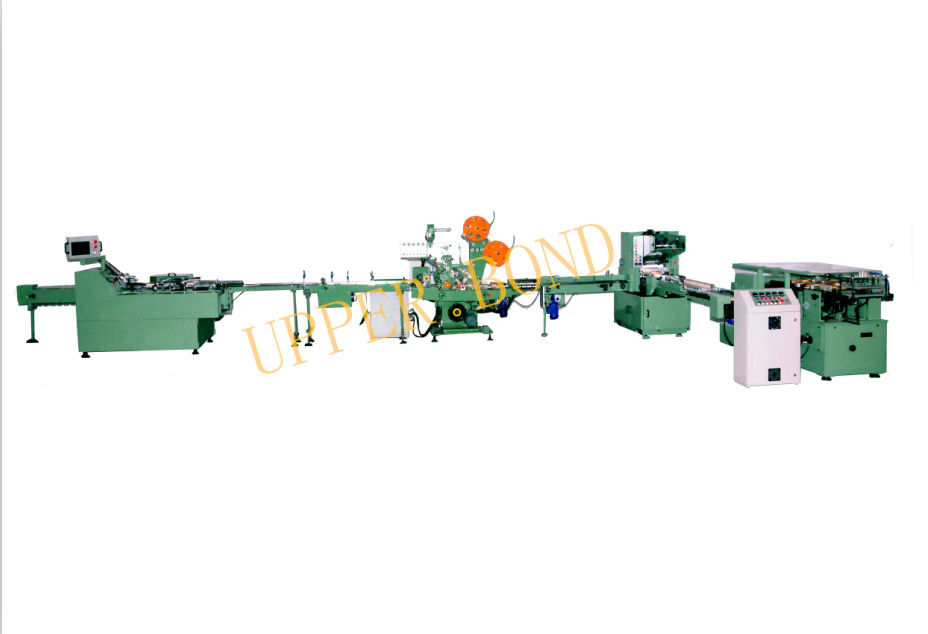

Hard Packet Packing Line for Molasses Tobacco

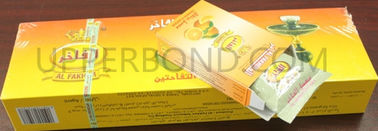

This product is used for wrapping of cigarette packets and cartons and it can be distinguished vertical package and horizontal package, so it is widely used on the boxes package. In addition, you also can cover the otherproduct package, just like the medicine, food and so on.

PLC tough screen makes it smart and efficient when it works and stable during the operation. Under the electronic system control, the chance making mistake will be reduced to the minimum. If you own our machine, I think your cost will be decreased and save the energy.



  1. International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
  2. Adopt human-machine operation system.
  3. Automatically stop when machine is overload.
  4. Automatically reject lacking of package product and leaflet.
  5.  Automatically display trouble, Alarm and count finished products.
  6.  Stable performance, operation is easy.



Technical Parameters:


Working Speed 8-10 Cartons/ min
PLC Siemens
Ambient Temp 25±5℃
Ambient RH 55%~65% RH
Compressed Air Needs

Pressure >0.60Mpa

Flow >48 m3/h

Packing Style

Traditional & Vertical
Power 380V, 3Phase 60HZ
Connected Load 9.61




All above these are the major information about this machine, if you want to know more about it you can contact us.


Package and Shipping

1,Package: Wooden Cases and others.

2,Shipping: We will deliver the goods within 30 works dates in general.Shipping company can be required as your demand.



1. How About the Installation & Adjustment?

After the equipment arrived at the customer’s site, customers are responsible for unpacking and arranging the equipment in reference to the placement drawing or under our install-adjust technicians’ guidance. Costs of our staffs are decided at last.


2. How about the "Quality Assurance"

We are responsible for the faults and damages of the production line caused by our design, technology, manufacture, installation, adjustment and material defect etc.The warranty period is 12 months after acceptance check of the production line. If there is any different between the furnished equipment in the customer’s factory and the equipment concerned in the contract, the users have the right to pass the inspection book to the legal department to claim for compensation to our company within goods warranty period.


3.How about the Warranty?

We offer 12 months maintenance period to the problems that caused by our design, manufacture, and material quality, and offer the relevant parts and effective services for free if the problems was caused by above reasons. We will offer a life-long technical support, after service for customers.
