Product Details:
Payment & Shipping Terms:
|
Condition: | In New | Color: | Metallic |
---|---|---|---|
Production Capacity: | 30 Bags/min | Automatic Grade: | Automatic |
Power: | 2.6KW | Voltage: | 220V 50HZ |
Bag Size(mm): | L100-240/W80-150 | Weight(kg): | 500 |
Dimension(L*W*H) (mm): | 1200*800*2200 | Port: | Huangpu,Guangzhou |
Bag Style: | Pillow Style | ||
Highlight: | tobacco packing machine,molasses machine |

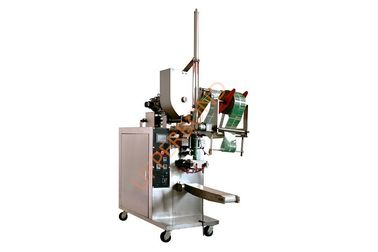

INTRODUCTION
The machine is suitable for packing tobacco, molasses, mustard, chili sauce etc.The integrated processes of bag making, measuring filling, sealing cutting, counting and hot pressing codes can be done automatically. Packing material includes several kinds of heat seal lamination, such as PET/plated AL/PE, PET/PE,PAPER/PE, NYLON etc.
FEATURE
1.All stainless steel cover meets to GMP standard.
2.Equipped with antipollution and dustproof device.
3.Automatic adjustment of pouch size and filling range.
4.Photocell controller is easy to manipulate.
5.Automatic self support lubricating system,the machine can work 24 hours.
6.The operation facility is controlled by American Intel computer,all function is displayed with digital screen.
7.Minimum sealing temperature variation employs PID temperature;the tolerance is controlled by ±2%.
8.Along with assembling automatic no packing alarm system,help user to economize cost.
9.Equipped with easy open system.
TECHNICAL DATA
Type | GLK50GM | GLK100GM | GLK250GM |
Bag size (mm): | L50-150/W60-120 | L80-180/W80-150 | L100-240/W80-150 |
Bag size (mm): | Pillow style | Pillow style | Pillow style |
Capacity (bags/min): | 0-30 | 0-30 | 0-30 |
Filling range (gram): | 20-70 | 70-150 | 150-300 |
Power: | 220V 50HZ 1.6KW | 220V 50HZ 2.2KW | 220V 50HZ 2.6KW |
Weight(kg): | 400 | 450 | 500 |
Dimension (L*W*H) (mm): | 1000*800*1800 | 1100*800*2000 | 1200*800*2200 |
Different size of machine can be customized according to client's specific demand.
Package and Shipping
1,Package: Wooden Exported Cases .
2,Shipping: You can receive your goods within 30 works dates. If you have your own agent shipping company, we can point at as well.
1. How About the Installation & Adjustment?
After the equipment arrived at the customer’s site, customers are responsible for unpacking and arranging the equipment in reference to the placement drawing or under our install-adjust technicians’ guidance. Costs of our staffs are decided at last.
2. How about the "Quality Assurance"
We are responsible for the faults and damages of the production line caused by our design, technology, manufacture, installation, adjustment and material defect etc.The warranty period is 12 months after acceptance check of the production line. If there is any different between the furnished equipment in the customer’s factory and the equipment concerned in the contract, the users have the right to pass the inspection book to the legal department to claim for compensation to our company within goods warranty period.
3.How about the Warranty?
We offer 12 months maintenance period to the problems that caused by our design, manufacture, and material quality, and offer the relevant parts and effective services for free if the problems was caused by above reasons. We will offer a life-long technical support, after service for customers.
