Laser Perforation Machine for Cigarette Production with 130 m/min Capacity 460mm Working Width and 10.6 μm Wave Length

Large Image : Laser Perforation Machine for Cigarette Production with 130 m/min Capacity 460mm Working Width and 10.6 μm Wave Length

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	OSAY

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$280,000-300,000

Contact Now

Detailed Product Description

Voltage:	380 V	Dimensions:	14008201100 Mm
Production Capacity:	130 M/min	Working Width:	460mm(18.11in)
Weight:	210 KG	Power Consumption:	Up To 6kw
Laser Model:	K Series CO2 Pulsed Laser	Wave Length:	10.6 μm
Divergence:	≤2.1 Mrad	Laser Diameter:	7.2 Mm
Resonant Life:	>20,000 Hours	Resonant Storage Time:	<3 Years
Punch Pulse Time:	5 ~ 60μs	Number Of Holes:	0-99 Holes
Air Compressor Consumption:	4.5m3/h
Highlight:	130 m/min Production Capacity Laser Perforation Machine , 460mm Working Width Cigarette Production Machine , 10.6 μm Wave Length Tipping Paper Perforation Machine

Laser Perforation Machine for Tipping Paper Creasing Features Schneider PLC Steel Core Motor for Manufacturing Plants

Product Description

The tobacco market increasingly demands higher cigarette quality, particularly in meeting ventilation rate testing requirements for tipping cigarettes. Our laser perforation machine addresses these needs through innovative technology.

Online Cigarette Laser Drilling Advantages

Low operating costs with reduced focus requirements for convenient, fast control and stable data
Wide industry adoption: Used by 80% of foreign cigarette manufacturers
Higher efficiency: Eliminates need for glue line cleaning stops, prevents cigarette leakage and hole blocking
Reduced production costs while maintaining higher stability

Performance Specifications

Drilling Method	Standard Deviation (SD)	Coefficient of Variation (CV%)
Online Perforation Machine	0.8-1.5	11-15%
Tipping Paper Punching Machine	2.0-2.5	15-25%

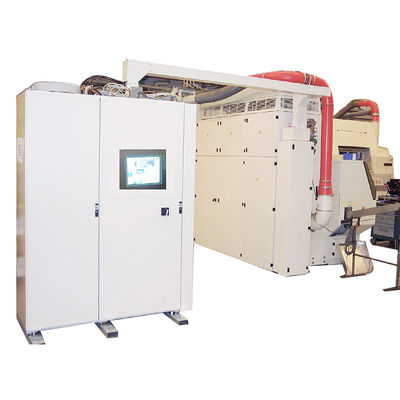

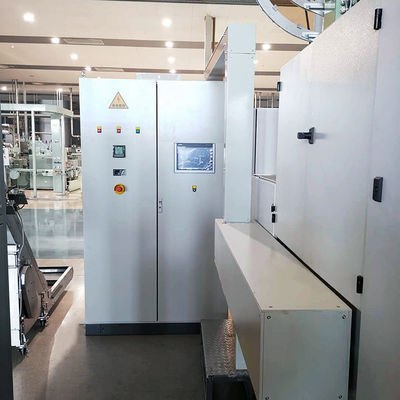

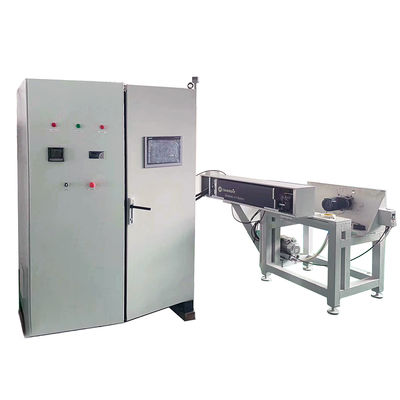

Detailed Machine Views
