Computerized Laser Perforation Creasing Machine with 380 V Power and 14008201100 mm Dimensions for Cigarette Manufacturing

Large Image : Computerized Laser Perforation Creasing Machine with 380 V Power and 1400*820*1100 mm Dimensions for Cigarette Manufacturing

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	OSAY

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$280,000-300,000

Contact Now

Detailed Product Description

Voltage:	380 V	Dimensions:	14008201100 Mm
Production Capacity:	130 M/min	Working Width:	460mm(18.11in)
Weight:	210 KG	Power Consumption:	Up To 6kw
Laser Model:	K Series CO2 Pulsed Laser	Wave Length:	10.6 μm
Divergence:	≤2.1 Mrad	Laser Diameter:	7.2 Mm
Resonant Life:	>20,000 Hours	Resonant Storage Time:	<3 Years
Punch Pulse Time:	5 ~ 60μs	Number Of Holes:	0-99 Holes
Air Compressor Consumption:	4.5m3/h
Highlight:	380 V Laser Perforation Creasing Machine , 14008201100 mm Cigarette Laser Drilling Machine , 1 Year Warranty Tipping Paper Perforation Machine

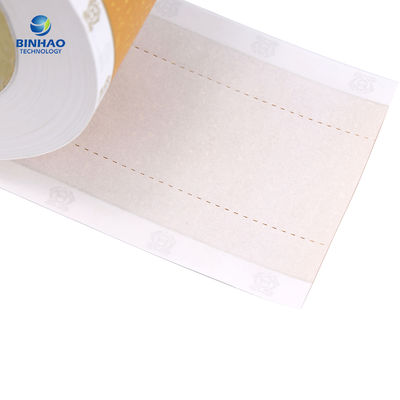

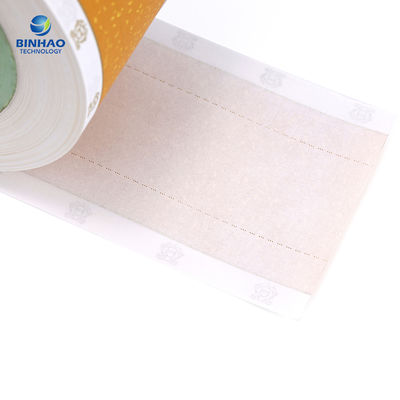

Laser Perforation Creasing Machine for Tipping Paper

Essential Equipment for Cigarette Manufacturing Plants

As tobacco market requirements for cigarette quality continue to increase, achieving optimal ventilation rates has become a critical factor in cigarette production. Our laser perforation creasing machine provides an advanced solution for tipping paper processing.

The machine utilizes online laser drilling technology with full roll coating roller application, significantly improving cigarette ventilation rate stability while reducing production costs. This results in enhanced product consistency and better control over key quality indicators.

Online Cigarette Laser Drilling Advantages

Low operating costs with reduced focus requirements
Convenient, fast control with stable performance data
Widely adopted by 80% of international cigarette manufacturers
Higher efficiency with no need for glue line cleaning stops
Eliminates cigarette leakage, flapping, and hole blocking issues
Lower production costs with higher process stability

Performance Specifications

Drilling Method	Standard Deviation (SD)	Coefficient of Variation (CV%)
Online Perforation Machine	0.8-1.5	11-15%
Tipping Paper Punching Machine	2.0-2.5	15-25%

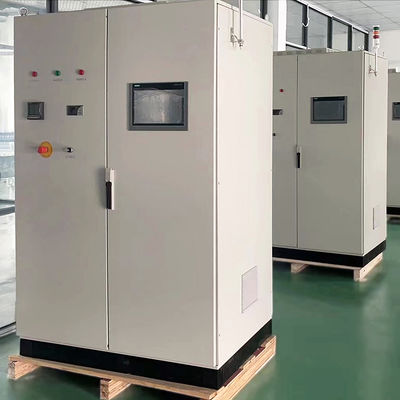

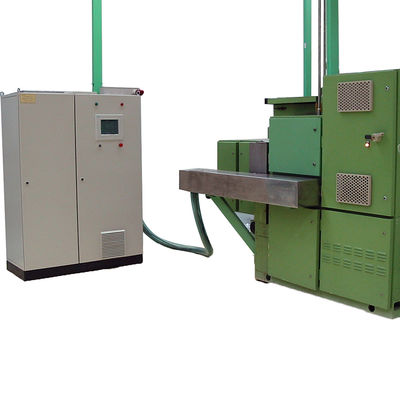

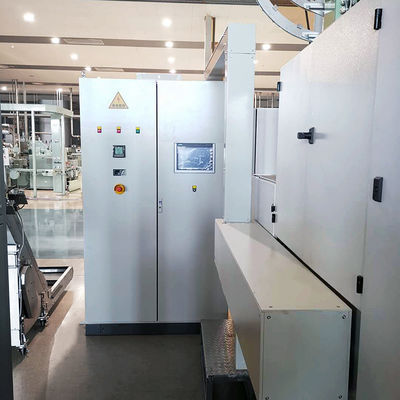

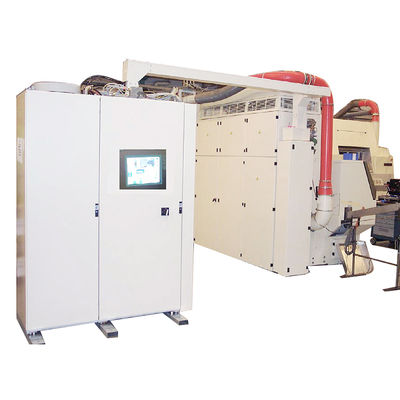

Detailed Machine Images

Manufacturer Profile

Hainan Osay Technology Group Co., Ltd.

We specialize in manufacturing and supplying spare parts for tobacco machinery, along with providing premium technical services to the tobacco industry. Our team stays current with industry trends to deliver cutting-edge solutions tailored to our clients' specific requirements.

Our product range includes spare parts for cigarette making machines, packing machines, and filter making machines. We also offer custom manufacturing services based on client drawings or samples, with all products meeting strict tobacco industry standards.
