ABB PLC Controlled Laser Perforation Machine 130 m/min 460mm Width

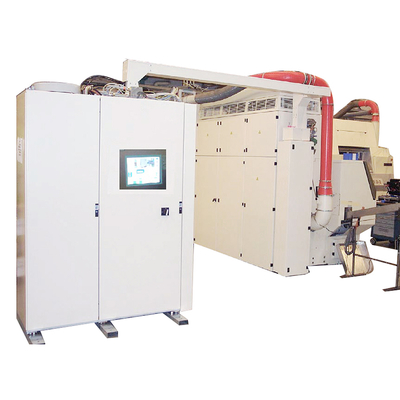

Large Image : ABB PLC Controlled Laser Perforation Machine 130 m/min 460mm Width

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	OSAY

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	US$280,000-300,000

Contact Now

Detailed Product Description

Voltage:	380V	Dimensions:	14008201100 Mm
Production Capacity:	130 M/min	Working Width:	460mm
Weight:	210 KG	Power Consumption:	Up To 6kw
Laser Model:	K Series CO2 Pulsed Laser	Wave Length:	10.6 μm
Divergence:	≤2.1 Mrad	Laser Diameter:	7.2 Mm
Resonant Life:	>20,000 Hours	Resonant Storage Time:	<3 Years
Punch Pulse Time:	5 ~ 60μs	Number Of Holes:	0-99 Holes
Air Compressor Consumption:	4.5m3/h
Highlight:	ABB PLC laser perforation machine , high-speed cigarette production machine , wide-width laser perforation equipment

Advanced PLC Controlled Laser Perforation Equipment for Cigarette Manufacturing Tipping Paper

Product Specifications

Attribute	Value
Type	Other
Computerized	Yes
Voltage	380V
Dimensions (L×W×H)	1400×820×1100 mm
Warranty	1 Year
Production Capacity	130 m/min
Working Width	460mm
Weight	210 KG
Power Consumption	Up to 6kW
PLC Brand	ABB
Laser Model	K series CO2 pulsed laser
Wave Length	10.6 μm
Divergence	≤2.1 mrad
Laser Diameter	7.2 mm
Resonant Life	>20,000 hours
Punch Pulse Time	5 ~ 60μs
Number of Holes	0-99 holes
Air Compressor Consumption	4.5m³/h

Product Description

The tobacco market increasingly demands higher cigarette quality to meet various testing standards, particularly for ventilation rate measurements in tipping cigarettes.

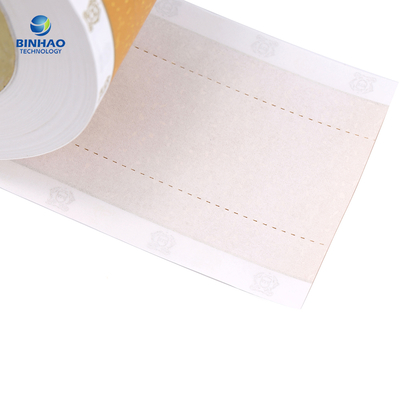

Our advanced laser perforation equipment utilizes full roll coating roller coating method with ordinary cigarette tipping paper and filter rod forming paper. The online laser drilling system reduces impact on cigarette ventilation rates, improves stability, and enhances detection indexes while providing timely control and reducing production costs.

Online Cigarette Laser Drilling Advantages

Low operating costs with reduced focus requirements, convenient control, and stable data output
Wide industry adoption - Used by 80% of foreign cigarette manufacturers
Higher efficiency - No need for glue line cleaning stops, eliminating cigarette leakage, flapping, or hole blocking
Lower production costs compared to traditional methods
Superior stability in perforation quality

Performance Comparison

Drilling Method	Standard Deviation (SD)	Coefficient of Variation (CV%)
Online Perforation Machine	0.8-1.5	11-15%
Tipping Paper Punching Machine	2.0-2.5	15-25%

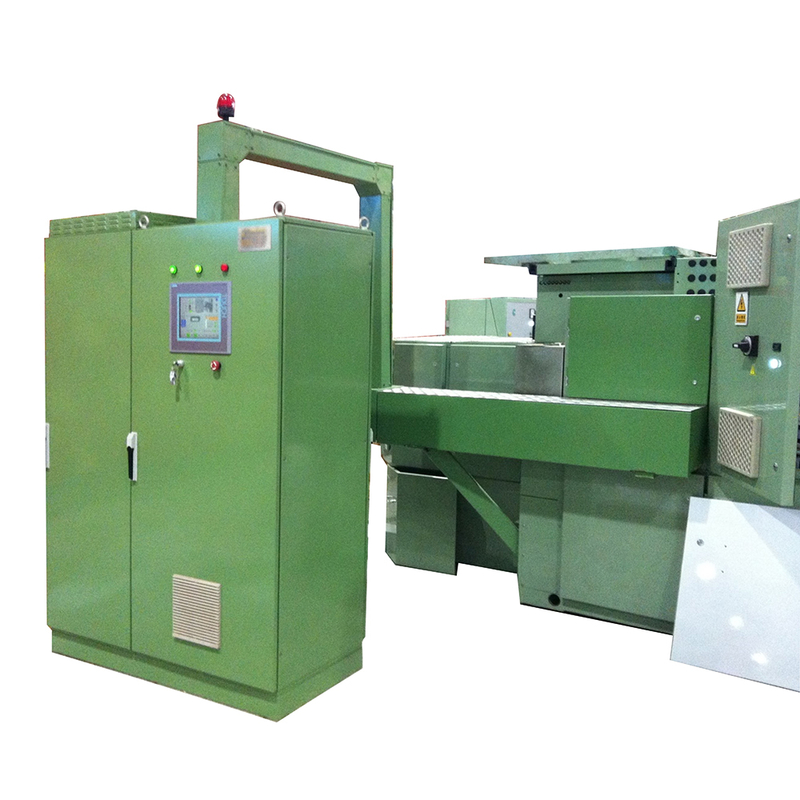

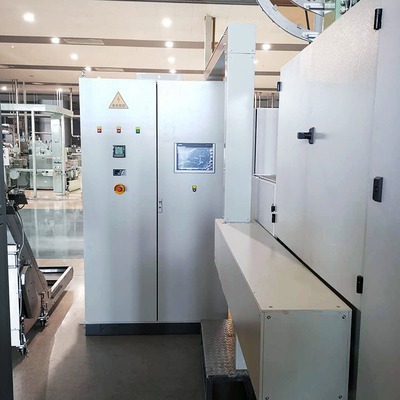

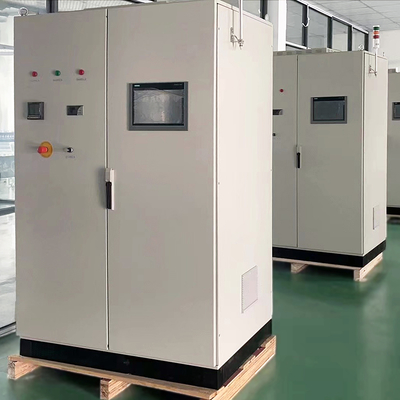

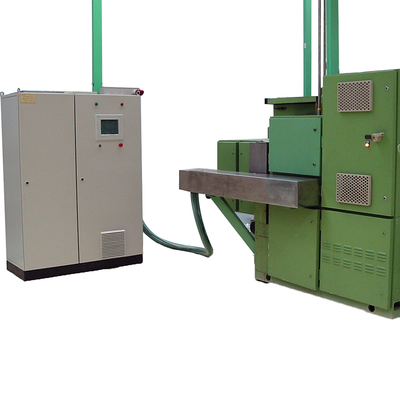

Detailed Equipment Images
