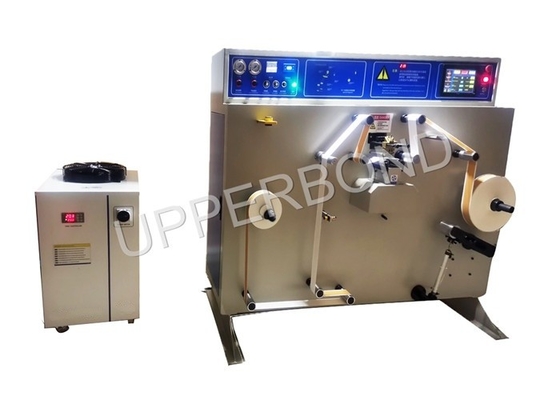

CPT-100 PC-Control Off-Line Tipping Paper Laser Perforation Machine With 250 M/Min Speed

CPT-100  PC-Control Off-Line Tipping Paper Laser Perforation Machine With 250 M/Min Speed

Description

1.System

Control Operation Interface System

Laser perforating equipment with digital micro-computer control system, which control the laser and the running of tipping paper and testing. The operator through the system input and adjust the operational data.

The control system implements speed of tipping paper and laser scanning pulse frequency synchronous. No matter how the speed of tipping paper , it can ensure that laser perforating work in accordance with the operator's instructions.

Optical transmission system

The adjustment of the fixed optical path of laser beam can ensure the correct orientation

Refractor and diaphotoscope mirror will be easy to be installed and replaced, be easy to be cleaned and maintained, no affect to the optical path adjustment ,Dry machining lenses to provide oil-free air.

Waste row ventilation system

There are some waste outlets on the equipment, which are used to remove the dust and exhaust during laser perforating. The users can connect the port to the outside pipe.

Features

• Microcomputer intelligent Control system using the German SIMEMS . Allows you to operate more convenient.
• Laser generator used from U.S. SYNAD RF RF-excited CO₂ 100W laser, long working life, high stability.
• The LCD screen display; setting up various work Parameters, the use of more intuitive.
• Mechanical corrective devices to ensure the punch edge distance and flatness of panel face.
• Shortcut function keys easy to operate , A click-to-get.
• Fault Diagnosis Equipment failure, LCD screen directly for easy maintenance.
• Rewinding system adopts Japanese YASKAWA YASKAWA VS-606V7 Inverter systems, reliability can be high.
• Strong emission of waste, Removal of the production of exhaust gas to maintain the production environment with fresh air.

Technical parameters
