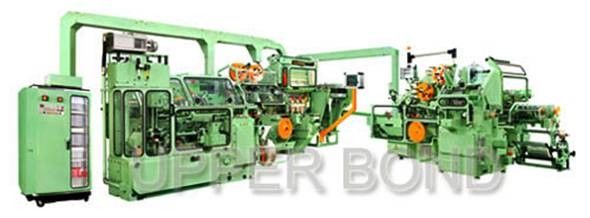

GDX2-CH Cigarette Packing Line For Hard pack
GDX2-CH is a high-speed model, capable of producing 400 hinge-lid packets per minute. It was developed on the basis of X2 SC/4350/PACK-OW, which technology was introduced through the Technology Transfer Agreement between G.D. Italy, and China National Tobacco Corp. As a domestic product, GD2-ch consists of an YB15 Tray Feeder, an YB45 Hinge-lid Packer, an YB55A Cellophaner, an YB65A Cartoner and an YB95A Over wrapper.
The entire working process, from cigarettes feeding to carton overwrapping, is completed automatically without any manual contact.
The settings of machine operation, quality control, shift reporting, enhanced stoppage analysis, machine status, diagnostics and system calibration are achieved entirely digitally by the brand new MICRO-II system with integrated touch screens.
GDX2-CH won the second prize at the Technology and Improvement Competition by State Tobacco Monopoly Bureau in 2000
Production Capacity: 400 packets/min (40cartons/min)
1. Diameter: φ7.8mm
2. Length: 84mm
Cigarette Collation 7-6-7
Packet Dimension: 86mm × 54.5mm × 22.5mm
1. Width: 19mm~23mm
2. Length: 42mm~50mm
Carton Dimension: 274mm × 87.5mm ×46.5mm
1. (American and European style)
Noise level: ≤85dB(A)
Floor Area: 7300mm × 6300mm
(All the products specification can be configured upon customized requirements.)
