22KVA 50Hz YL12D / YL22D / YJ35D Rod Forming Cigarette Filter Machine

22KVA 50Hz YL12D / YL22D / YJ35D Rod Forming Cigarette Filter Machine
22KVA 50Hz YL12D / YL22D / YJ35D Rod Forming Cigarette Filter Machine

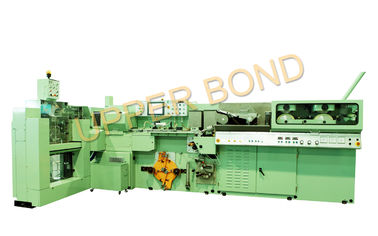

Large Image :  22KVA 50Hz YL12D / YL22D / YJ35D Rod Forming Cigarette Filter Machine

Product Details:

Place of Origin: China
Brand Name: UPPER BOND
Model Number: ZL22D

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: WOODEN CASES
Delivery Time: 30Works Dates
Payment Terms: T/T
Supply Ability: 100 SETS/YEAR
Detailed Product Description
Highlight:

industrial cigarette rolling machine

,

commercial cigarette making machine

22KVA 50Hz YL12D / YL22D / YJ35D Rod Forming Cigarette Filter Machine



Technical Highlight:



KDF2 Filter Rod Making Combination includes YL12D Tow Processor, YL22D Filter Rod Maker, and YJ35D Tray Filler. It keeps the traditional advantage of structure and adopts advanced techniques of SERVO controller, communication and inspection. It operates very stably, producing filter rod with high quality. Production Speed reaches 400m/min..

  1. The electrical control system adopts SIEMENS S7-300 PLC control system.
  2. This combination reserves the interfaces of factory informationization and network.
  3. Man-machine interface makes it easy to communicate between operator and machines.
  4. Plugwrap Splicing at any speed can avoid large fluctuation of machine speed, so that filter rod quality and production efficiency are increased.

5.Driving and driven linkage with 5 servo motors is adopted for the system. Mechanical power loss won’t occur. High accuracy electronic synchronous drive for the system realizes synchronous speed and phase which intensifies original mechanical drive performance.



MAIN PARAMETERS:



1.Output:

400m/min

2.Power Voltage:

380V±38V

Power Frequency:

50HZ±1HZ

Total Power:

22KVA

3.Filter Rod Range



  Filter Rod Diameter:

φ6 –φ9mm

  Filter Rod Length:

64mm–150mm

4.Normal Specification



Filter Rod Diameter:

φ7.7 –φ7.79mm

Standard Filter Rod Length:

120±0.5mm

Filter Rod Length:

90, 100, 120, 150mm

5.OVERALL SIZE(L×W×H):

8060×2370×3000mm

6.Weight:



  YL12D Tow Processor:

1100Kg

YL22D Filter Rod Maker:

2000Kg

YJ35D Tray Filler:

1500Kg22KVA 50Hz YL12D / YL22D / YJ35D Rod Forming Cigarette Filter Machine 0



22KVA 50Hz YL12D / YL22D / YJ35D Rod Forming Cigarette Filter Machine 1
