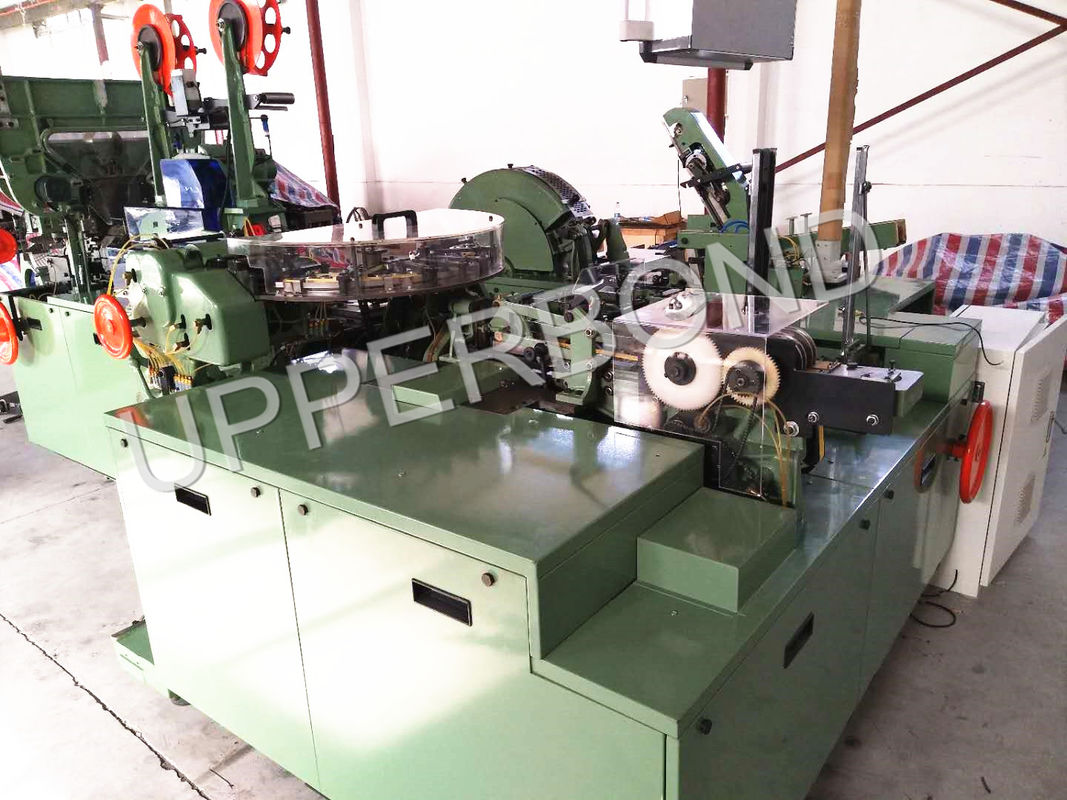

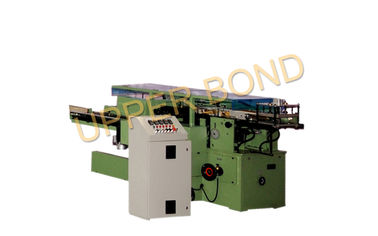

HLP2 Over Wrapper Cigarette Packing Production Machine

 Item

Over Wrapper

1.Maximum Speed

18 Cartons/Min

2.Working Speed

18 Cartons/Min

3.PLC

Siemens

4.Text Display

HLP2

5.Technical Documents

English only

6.Ambient Temp

18-23℃

7.Ambient RH

50-85% RH

8.Machine color

Green

9.Year two class preparation

According to user’s needs to order

10.Compressed Air

From 3-C154 connect to come over

11.Diameter Supply Line

compress air,   compress air , Inside diameter 8-10mm nylon tube

12.Voltage

480 V, 3 Phase 60 HZ

13.Connected Load

2.12 KW

14.Safety Loop Voltage

24 V

15.Neutral wire required

Yes

16.BOPP

1. (GB/12026-89)
nature: Polypropylene BOPP  for heat-sealed, can be stretched in vertical two ways. The specification should conform to the Nation Standard GB/12026-89.

2. dosage           19-23g/ m2
3. width             350mm
4. diameter of bobbin core  ∮75mm

17.Tear strip

1.Nature of Anti-stretch is strong, force of break no less than 10N, plain and straight, without spirals.
2. width       2.5mm
3. diameter of core   ∮28mm
4. dosage      40-70g/ m2
