Metallic Material Laser Perforation Equipment / Cigarette Tobacco Machiney

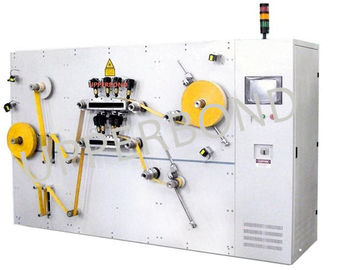

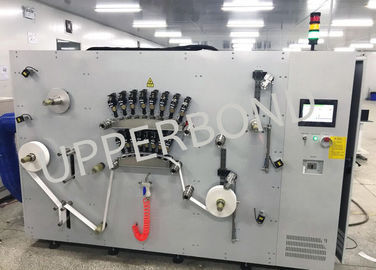

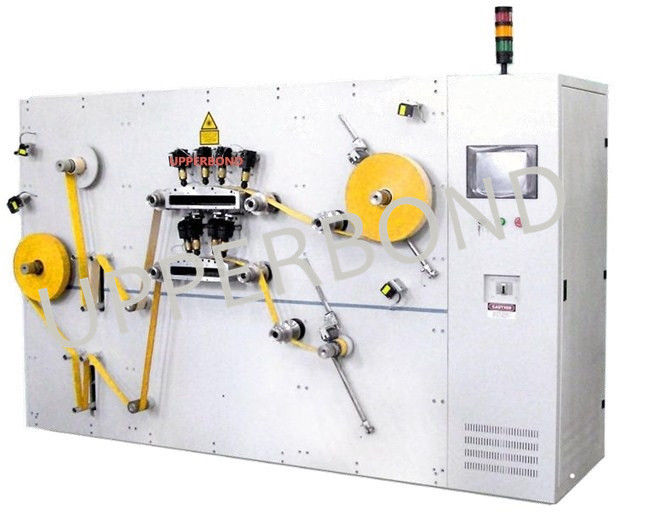

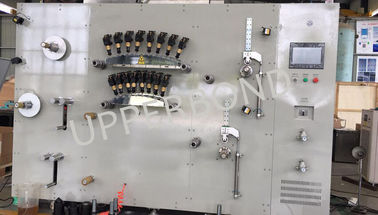

Off Line Laser Perforation Equipment Perforating Machine Cigarette Tobacco Machiney

Introduction:

It is a global consensus that tar in cigarettes harms human health. Every government is expressly provides methods to reduce the

tar content in cigarettes. Practice has proved that laser perforating method is the most effective solution

has developed the tipping paper perforating system CTP-250/350/450/600

professionally used in Cigarette manufacture and tipping paper production industry.

The device is with imported components for stable performance, good functions, also with online help and self-diagnostic

function with accurate target C.U. range in productive speed.

Compared with single Bobbin-station cigarette tipping paper perforation, the double Bobbin-station cigarette tipping

paper perforation enhances the production by 1.5—1.7 times and adopts 28g/m2—40g/m2 tipping paper. At present,

the equipment has even more excellent functions and more humankind operations to improve product yield, ensure

product quality and maximize profits for customers.

Advantages of our new GHR perforation system :

● Weather-resistant aluminum frame

● The multi-purpose machine can finish double-station four-rows, six-rows, eight-rows or single-station

sixteen-rows perforation at the same time;

● Adopted with own intellectual property patented technology, it can automatically complete winding and removing

of waste paper, rolling, changing and winding of paper core, so as to reduce the worker labor intensity;

● With fast acceleration, it can reach the rated speed within 2 seconds so as to minimize consumption and reduce

costs;

● With high security and reliable interlock protection function, it can automatically interrupt the current operation

and indicate alarm for machine failure or Mis-operation.

• Chinese /English /Russia graphical user interface

• Optical system

The CTP-250/350/450/600 optical system module is flexible and stable in performance ,dividing into 4-8-16-channels independently, each station with 8-row holes.

Also can be converted into 4-8-16 rows single station for high C.U. perforating process in simple operation.

Optic-lens is with precision coating process and durable and reliable in actual performance:

■ High-Speed Rotating Prism-

Imported high-speed rotating prism( 30000mm/min), with high running accuracy.

■ Primary operating system-

Imported TFT color touch screen. Operating simple and easy with real-condition monitoring function to track

the actual perforating speed, two station can process separate perforating job in different C.U. Range.

The C.U. perforation range can be optimized in perforating process condition.

■ Main control system-

Imported PLC programmable controller that can be operated according to user needs , also easy to upgrade and

adjust the device functionality.

Red beam indicator can detect the real bobbin paper diameter to ensure the line-speed in accurate constant.

Rotary server motor in high standard configuration.

Auto-unprocessed paper release function is available to increase perforating efficiency.

■ Tension Control-

Automatic tension controller ,which can ensure take-up tension to be constant and suitable of the bobbin roller,

so that the winding rolls could keep smooth to ensure the perforating process in smooth process.

■ Power Distribution Box with Transformer and Line Stabilization

Isolation transformer and electrical distribution including housing, safety circuit, power distribution, emergency stop

and fuses.

All above mentioned parts of the perforation system are connected to the power distribution box.

Operating Requirements for the Complete System Electrical supply:

Line voltage 380VAC, 3 phases, N, PE

Max. current per phase: 40A

Fusing level: 60A

Max. power consumption: 35kVA

Line frequency: 50 Hz

The end-users’ electrical supply data is: 380V, 3 phases

Air Supply:

Minimum pressure: 6 Bar

Air consumption: 910 Litres/min

The compressed air must be filtered (0,5μm), dry, oil and solvent free.

Gas Consumption of laser source:

ROFIN Premix Laser Gas Use more than 20,000 hours .

One gas bottle inside the laser source lasts for approximately 3-5 years of three shift operation.
