Precise Durable Cigarette Filter Machine Intermediate Speed ZL23 With Fibre 250m/min

China Precise Durable Cigarette Filter Machine Intermediate Speed ZL23 With Fibre 250m/min supplier

Large Image :  Precise Durable Cigarette Filter Machine Intermediate Speed ZL23 With Fibre 250m/min

Product Details:

Place of Origin: China
Brand Name: Upperbond

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 30Works Dates
Payment Terms: T/T, L/C
Supply Ability: 200 sets per year
Contact Now
Detailed Product Description
Color: White Capacity: 250m/min
Brand: Upperbond Circle Of Filter Rod: 24.0~24.5mm±0.20
Unit Power:: 22KW Model Number: ZL23

Precise Durable Cigarette Filter Machine Intermediate Speed ZL23 With Fibre 250m/min

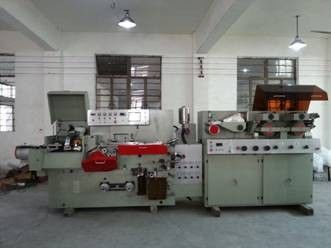

ZL23 set of fiber filter rod forming machine consists of YL13 loose gluing machine andYL23 filter rod forming machine. It takes cellulose acetate tows or polypropylene tows as raw material, after air loosing,thread loosing,gluing,involution,sideseal,forming and cutting, formed equilong filter tipping rod which meet the high-speed adapter request.



The machine can also use acetate tow and C tow. Opium pipe uses unitary and hot melt adhesive side sealing, making it easy for adjustment and operation, and reliable for splicing.The rod cutting blade applied with automatically cut feeding and automatically sharpen makes the filter rod notch smooth and flattening.



Opener applied with three-level air opening,two-level thread roller opening to completely stretch,loose,spread and gluing uniformity, and the forming machine take high-precision spiral bevel gear and paralleling short shaft driving, single tool rod cutting, to make sure small error of filter rod length.



Parameters:



Technical parameter

Product capability

250m/min(vinegar fiber) 160m/min(C fiber)

Length of filter rod :

80-144mm±0.5

Circle of filter rod:

24.0~24.5mm±0.20

Devilation from circular form:

≤0.35mm

Unit power:

22KW

Compressedair:

flow≥1.5m3/min, Kpa≥0.5MPa

Unit weight:

3500Kg





Precise Durable Cigarette Filter Machine Intermediate Speed ZL23 With Fibre 250m/min
