22KVA Cigarette Filter Machine 50HZ Tow Processor And Filter Rod

Product is in high quality. promising after sales

—— Daniel

I'm Online Chat Now

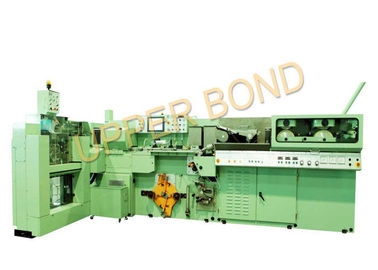

22KVA Cigarette Filter Machine 50HZ Tow Processor And Filter Rod

China 22KVA Cigarette Filter Machine 50HZ Tow Processor And Filter Rod supplier
22KVA Cigarette Filter Machine 50HZ Tow Processor And Filter Rod supplier

Large Image :  22KVA Cigarette Filter Machine 50HZ Tow Processor And Filter Rod

Product Details:

Place of Origin: China
Brand Name: UPPER BOND
Model Number: ZL22D

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: WOODEN CASES
Delivery Time: 30Works Dates
Payment Terms: T/T
Supply Ability: 100 SETS/YEAR
Contact Now
Detailed Product Description
High Light:

smoke filter machine

,

commercial cigarette making machine

Cigarette Filter Machine 50HZ Tow Processor And Filter Rod



Product Information:



KDF2 Filter Rod Making Combination keep the traditional advantage ofstructure and adopts advanced techniques of SERVO controller, communication and inspection. It operates very stably, producing filter rod with high quality. Production Speed reaches 400m/min.

1.This combination reserves the interfaces of factory informationization and network.
2.The electrical control system adopts SIEMENS S7-300 PLC control system
3.Man-machine interface makes it easy to communicate between operator and machines.
4.Plugwrap Splicing at any speed can avoid large fluctuation of machine speed, so that filter rod quality and production efficiency are increased.
5.Driving and driven linkage with 5 servo motors is adopted for the system. Mechanical power loss won’t occur. High accuracy electronic synchronous drive for the system realizes synchronous speed and phase which intensifies original mechanical drive performance.





MAIN PARAMETERS



1.Output:

400m/min

2.Power Voltage:

380V±38V

Power Frequency:

50HZ±1HZ

Total Power:

22KVA

3.Filter Rod Range



  Filter Rod Diameter:

φ6 –φ9mm

  Filter Rod Length:

64mm–150mm

4.Normal Specification



Filter Rod Diameter:

φ7.7 –φ7.79mm

Standard Filter Rod Length:

120±0.5mm

Filter Rod Length:

90, 100, 120, 150mm

5.OVERALL SIZE(L×W×H):

8060×2370×3000mm

6.Weight:



  YL12D Tow Processor:

1100Kg

YL22D Filter Rod Maker:

2000Kg

YJ35D Tray Filler:

1500Kg



YL12D Tow Processor, YL22D Rod Maker , Cigarette Filter Machine
