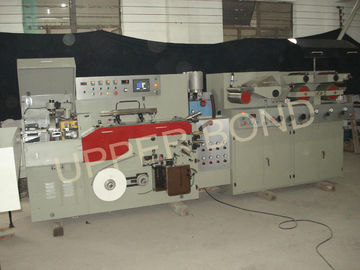

fiber filter rod forming machine

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  fiber filter rod forming machine

Product Details:

Place of Origin: China
Brand Name: Upperbond

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Delivery Time: 30Works Dates
Payment Terms: T/T, L/C, MoneyGram
Detailed Product Description
High Light:

smoke filter machine

,

commercial cigarette making machine

Opener applied with three-level air opening,two-level thread roller opening to completely stretch,loose,spread and gluing uniformity, and the forming machine take high-precision spiral bevel gear and paralleling short shaft driving, single tool rod cutting, to make sure filter rod’s length has small error. Opium pipe use unitary and hot melt adhesive side sealing, making it easy for adjustment and operation, and reliable for splicing. The rod cutting blade applied with automatically cut feeding,automatically sharpen, to make the filter rod notch smooth and flattening.



ZL23 set of unit applied with PLC control, frequency conversion, automatically adapting paper, with complete functions and high degree of automation, all kinds of parameter digitization demonstrated, easy for operation, and wide scope for raw material, it is the perfect medium speed filter rod forming equipment.





Technical parameter

Product capability

250m/min(vinegar fiber) 160m/min(C fiber)

Length of filter rod :

80-144mm±0.5

Circle of filter rod:

24.0~24.5mm±0.20

Devilation from circular form:

≤0.35mm

Unit power:

22KW

Compressedair:

flow≥1.5m3/min, Kpa≥0.5MPa

Unit weight:

3500Kg







Executive standard:

ZL23 unit:

YC/T113-1996

Vinegar fiber filter rod:

GB/T 5605-2002

C fiber filter rod:
