Home ProductsCigarette Packing Machine

HLP2 Green Testing Tobacco Packing Machine with 380V 3 Phase 60HZ

Good quality Cigarette Packing Machine for sales
Good quality Cigarette Packing Machine for sales
Product is in high quality. promising after sales

—— Daniel

I'm Online Chat Now

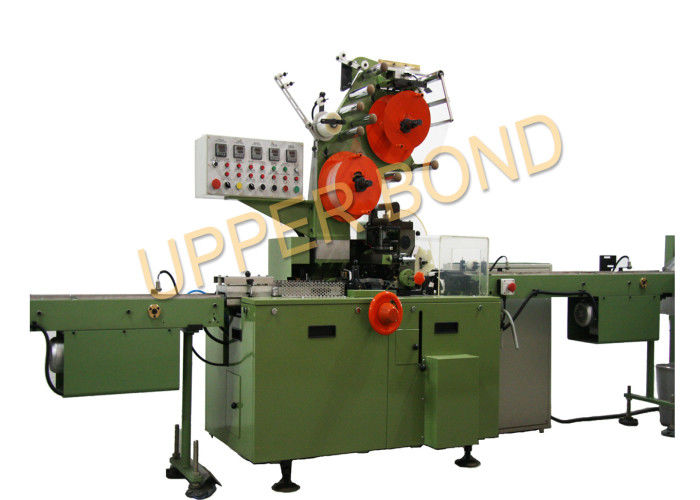

HLP2 Green Testing Tobacco Packing Machine with 380V 3 Phase 60HZ

China HLP2 Green Testing Tobacco Packing Machine with 380V 3 Phase 60HZ supplier

Large Image :  HLP2 Green Testing Tobacco Packing Machine with 380V 3 Phase 60HZ

Product Details:

Place of Origin: CHINA
Brand Name: UPPER BOND

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASES
Delivery Time: 1-2 MONTHS
Payment Terms: T/T
Supply Ability: 100 SETS/YEAR
Detailed Product Description
Max Speed: 180-180 Packets/Min Working Speed: 180-180 Packets/Min
Text Displays: HLP2 PLC: Siemens.


HLP2 Green Testing Tobacco Packing Machine with 380V 3 Phase 60HZ

HLP2 Green Tobacco Packing Machine 380V 3 Phase 60HZ


180 Packets / Min HLP2 Tobacco Packing Machine


Item

Wrapper

1.Max Speed

180-180 Packets/Min

2.Working Speed

180-180 Packets/Min

3.Text Displays

HLP2

4.Technical Documents

English only

5.PLC

Siemens.

6.Ambient Temp

25±5℃

7.Ambient RH

55%~65% RH

8.Color

Green

9.Year two class preparation

According to user needs to order

10.Compressed Air Needs

pressure     >0.60Mpa
flow         >48
/h

11.Diameter Supply Line

Inside diameter 8-10mm hose

12.Power

380 V, 3 Phase 60 HZ

13.Connected Load

3.6KW

14.Safety Loop Voltage

24 Volt

15.Need for Neutral Wires

Yes

16.BOPP

1. nature: Polypropylene BOPP for heat-sealed, can be stretched in vertical two ways. The specification should conform to the Nation Standard GB/12026-89.
2. dosage       19-23g/
3. width          118mm
4. diameter of bobbin core  ∮75

17.Tear strip

1. Nature of Anti-stretch is strong, force of break no less than 10N, plain and straight, without spirals.
2. width        2.5mm
3.diameter of core  ∮28mm
4. dosage     40-70g/

18.Size

87.5×56×23.7mm



Cigarette Packing Machine for Packet Wrapper
