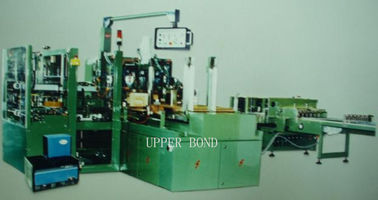

YP11 Automatic Cigarette Machine Case Packer 0.6MPa 2.5L / Min and 258 Cartons / Min

China YP11 Automatic Cigarette Machine Case Packer 0.6MPa 2.5L / Min and 258 Cartons / Min supplier
YP11 Automatic Cigarette Machine Case Packer 0.6MPa 2.5L / Min and 258 Cartons / Min supplier YP11 Automatic Cigarette Machine Case Packer 0.6MPa 2.5L / Min and 258 Cartons / Min supplier YP11 Automatic Cigarette Machine Case Packer 0.6MPa 2.5L / Min and 258 Cartons / Min supplier

Large Image :  YP11 Automatic Cigarette Machine Case Packer 0.6MPa 2.5L / Min and 258 Cartons / Min

Product Details:

Place of Origin: China
Brand Name: UPPERBOND
Certification: CE,ROHS,FCC,ISO9001
Model Number: YP11

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: WOODEN CASES
Delivery Time: 30Works Dates
Payment Terms: T/T
Supply Ability: 1000SETS/YEAR
Contact Now
Detailed Product Description
Packing: Max. 610mm×260mm×470mm(L×H×B) Capacity: 258 Cartons/min
Capacity Per Track: 43 Cartons/min Rated Power: 1.1kW
Butt-joint No.: 6 Tracks Operation: Automatic Operation



YP11 Automatic Cigarette Machine Case Packer 0.6MPa 2.5L / Min and 258 Cartons / Min





Features:




1. The machine designed according to the introduced technique of 465/329B Case Packer of Germany Focke Co. and the working records of more than 70 YP11 Case Packers


2. Automatic operation


3. Complete and easy-operated inspect & control points with trouble display


4. Reliable Siemens programmable controller and precise cam mechanism to real-time control the machine


5. Easy shifting between two packing rates of 50cartons/case and 25cartons/case


6. Modular structure and easy maintenance





Main technical data:




1. Rated productivity: 4 cases/min (remark: 50 cartons/case)


2. Packing specifications (L×H×B):
Max. 610mm×260mm×470mm
Min. 280mm×230mm×440mm


3. Rated power of electric system: 9.023kW
Case Packer: 5.0kW
Hot Plaster machine: 4.023kW


4. Compressed air consumption: 2.5L/min
Pressure: 0.6MPa

Vacuum pump flow: 40/h
Pressure: -0.08MPa


5. Entry height: 700mm±5mm


6. Exit height: 805mm±5mm


7. Net weight:2500kg





Sealing measures:




1. Hot adhesive


2. Adhesive tape


3. Combined





Options:




1. Adhesive melting system


2. Normal adhesive system


3. Vacuum pump


4. YP11.81 Transverse Collector


5. YP82 Transverse-longitude Transfer










YP11 Automatic Cigarette Machine Case Packer 0.6MPa 2.5L / Min and 258 Cartons / Min



YP11 Automatic Cigarette Machine Case Packer 0.6MPa 2.5L / Min and 258 Cartons / Min



YP11 Automatic Cigarette Machine Case Packer 0.6MPa 2.5L / Min and 258 Cartons / Min
