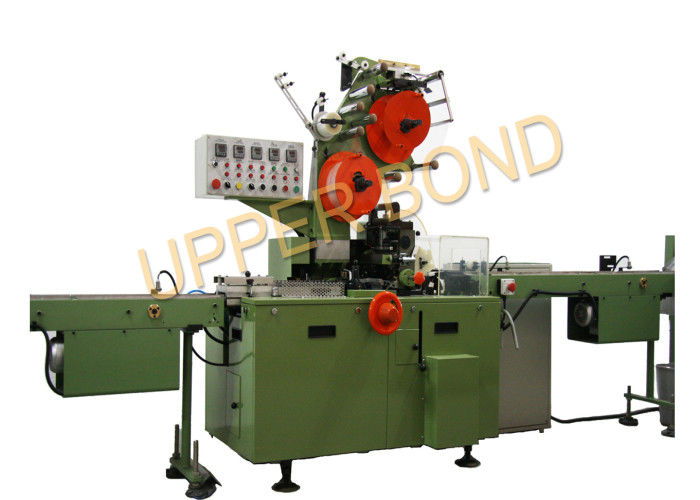

Three Phase Tobacco Packing Machine 380V 60HZ With Siemens PLC

Product is in high quality. promising after sales

—— Daniel

I'm Online Chat Now

Three Phase Tobacco Packing Machine 380V 60HZ With Siemens PLC

China Three Phase Tobacco Packing Machine 380V 60HZ With Siemens PLC supplier
Three Phase Tobacco Packing Machine 380V 60HZ With Siemens PLC supplier Three Phase Tobacco Packing Machine 380V 60HZ With Siemens PLC supplier

Large Image :  Three Phase Tobacco Packing Machine 380V 60HZ With Siemens PLC

Product Details:

Place of Origin: China
Brand Name: UPPERBOND
Model Number: Molasses cigarette packing machine

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 30Works Dates
Payment Terms: TT
Supply Ability: 1000sets/per year
Contact Now
Detailed Product Description





Three Phase Tobacco Packing Machine 380V 60HZ With Siemens PLC





Product  Information:



This machine is used to packing the BOPP film outside the packet paper, it can also be used in packing Molasses Tobacco.



Technical Parameters:

Item

Packet Wrapper

1.Max Speed

180-180 Packets/Min

2.Working Speed

180-180 Packets/Min

3.Text Displays

YB43

4.Technical Documents

English only

5.PLC

Siemens

6.Ambient Temp

25±5℃

7.Ambient RH

55%~65% RH

8.Color

Green

9.Year two class preparation

According to user needs to order

10.Compressed Air Needs

pressure     >0.60Mpa
flow         >48m3/h

11.Diameter Supply Line

Inside diameter 8-10mm hose

12.Power

380 V, 3 Phase 60 HZ

13.Connected Load

3.6KW

14.Safety Loop Voltage

24 Volt

15.Need for Neutral Wires

Yes,

16.BOPP

1. nature: Polypropylene BOPP for heat-sealed, can be stretched in vertical two ways. The specification should conform to the Nation Standard GB/12026-89.

2. dosage       19-23g/ m2

3. width          118mm

4. diameter of bobbin core  ∮75

17.Tear strip

1. Nature of Anti-stretch is strong, force of break no less than 10N, plain and straight, without spirals.

2. width        2.5mm

3.diameter of core  ∮28mm

4. dosage     40-70g/ m2

18.Size

87.5×56×23.7mm
