| Application: | Roll Your Own | Capacity: | 20 - 30 Pouch/min |
|---|---|---|---|
| Pouch Size: | 30 G/pouch | Place: | China |
| Filling Style: | Automatic | ||
| High Light: | 30g/pouch Cigarette Production Machine,roll your own cigarette packing line,20g/pouch Cigarette Production Machine |
||
30g/pouch Cigarette Production Machine Roll Your Own Packing Line
Line unit
Threshing Feeder + Z-Lifter + Combined Weigher + Auto-Forming Compressing Pouch Packer + Weight Control Device
Threshing Feeder
Tresh input compressed tobacco to make it fluffy.
Volume: 80 L
Material: 304 Stainless Steel
Z-Lifter
Capacity: 1.5-3 cbm/h
Voltage:220 V,50-60 Hz
Power: 1.5 KW
Material: 304 Stainless Steel

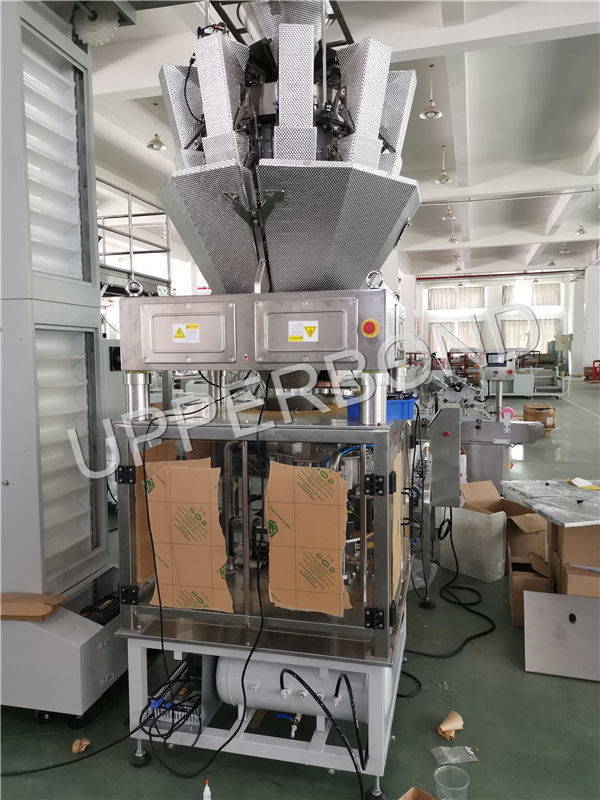

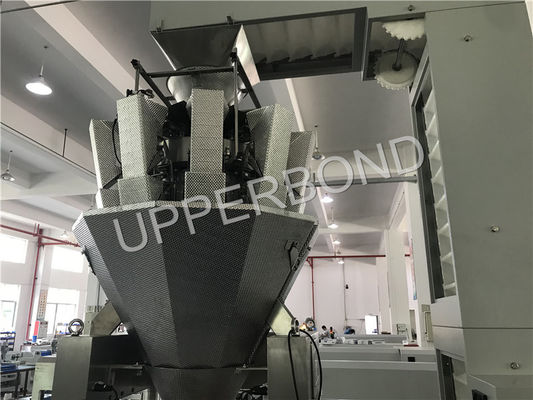

Combined Weigher
Material in contact with product: embossed plate.
The feeding chute is in 60° angle, so the material falls more smoothly.
Hat-shaped thresher to ensure that materials do not stay in the thresher center.
Using both positive and negative adjustable rotating main vibrator, ensuring the materials enter the line vibrating plate evenly.
The thickened cast aluminum center brancket enhances the strength of the machine, shortering the weighing stabilization time.
Parameter
| Material | RYO tobacco |
| Tobacco weight | 20 - 50 g |
| Capacity | 20 - 30 pouch/min |
| Power | 220 V, 50/60 HZ |
| Air Source | 6—8 KG/cm2 |
| Dimension | 4000*3000*3000 mm |
| Weight | 1500 KG |
| Packing | Wooden Case |

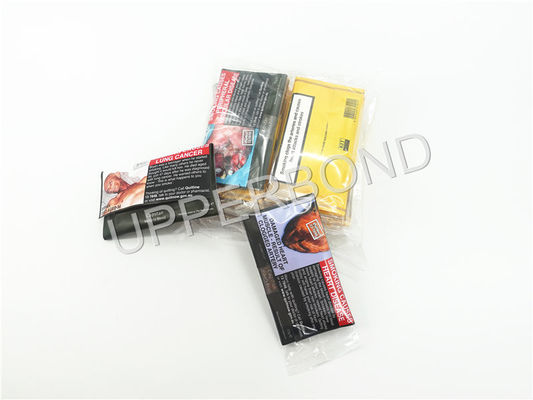

Finished Product
