Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Color: | Metallic |
|---|---|---|---|
| Power: | 2kw | Voltage: | 220V |
| Port: | Guangzhou | Material: | Metallic |
| High Light: | tobacco packing machine,molasses machine |
||

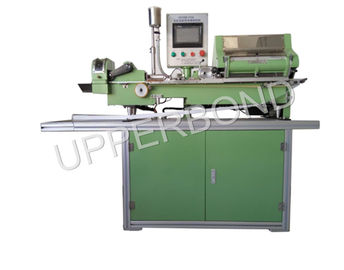

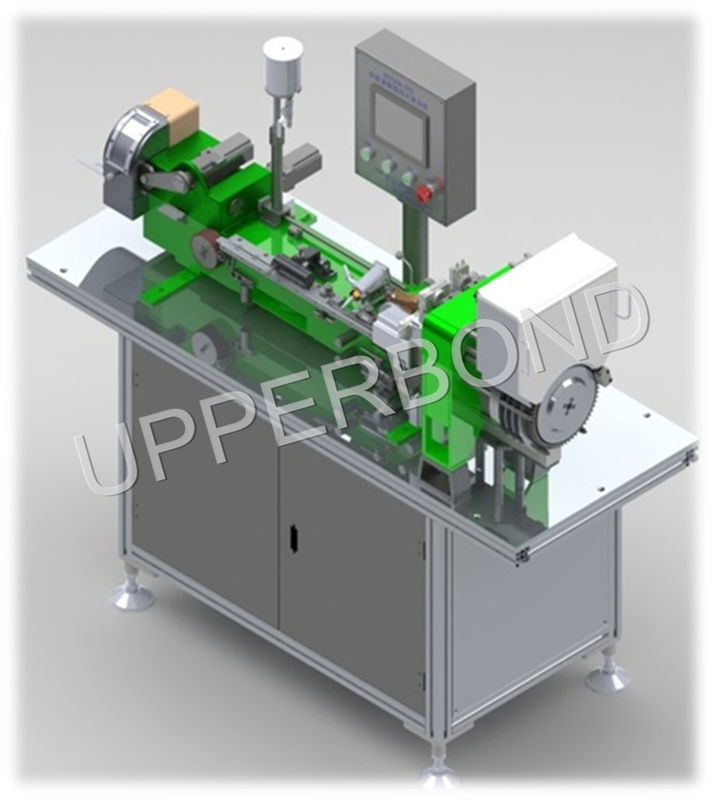

Heat No Burn Cigarette Experimental Equipment Single-phase 220V
Production line included:
1. Cutting machine
Used to cut a filter rod of specified length and split the joint cigarettes into two pieces
Specification:
|
Supply voltage: |
Single-phase 220V |
|
Power consumption: |
0.2KW |
|
Production capacity: |
40 per minute |
|
Original rod specification: |
Maximum length 190, diameter 5-9 |
|
Cutting specification: |
Minimum length 6 |
|
Overall dimension: |
400×680×580mm |
2. Paper machine
Used to connect heat-no-burn cigarette filter to double the cigarette’s length or to rub a layer of tipping paper outside the cigarette.
Specification:
|
Supply voltage: |
Single-phase 2200V |
|
Power consumption |
1KW |
|
Production |
20 per minute |
|
Cigarette specification |
Maximum length 180, diameter 5-9 |
|
Tipping paper width |
Maximum width 80 |
|
Overall dimension |
500×520×600mm |
3.Composite cigarette making machine
According to the different material and specification requirements of heat-no-burn cigarettes, different lengths can be rolled out.
Specification:
|
Supply Voltage |
Single-phase |
|
Equipment Power |
2KW |
|
Production |
100 per minute |
|
Cigarette specification |
maximum length 10, diameter 5-9 |
|
Overall Dimension |
1700×600×1500mm |
4. Four-element compound machine
DFFUCB-015 laboratory new four-element compound machine is used in sample trial-manufacture of heat-no-burn
cigarettes and composite filter rods. The minimum length of the composite unit can reach 6mm. It can not only realize four kinds of elements compounding, but also three and two elements.
The machine adopts all-digital control technology, and the length of each unit can be changed by adjusting the parameters on the touch screen without changing the parts.
Product quality and production speed are much higher than foreign products.
Specification:
|
Supply Voltage |
Single-phase 220V |
|
Equipment Power |
2KW |
|
Production |
15 per minute |
|
Original rod specification |
maximum length 150, diameter 5-9 |
|
Overall Dimension |
1600×600×1600mm |
