380V 50Hz MK9 Cigarette Making Machine 5000 Cigarette Per Minute

Automatic MK9 Cigarette Making Machine With 5000 Cigarette Per Minute

INTRODUCTION

MK9 = Cigarette rolling machine + Filter assembling machine + Tray filling machine

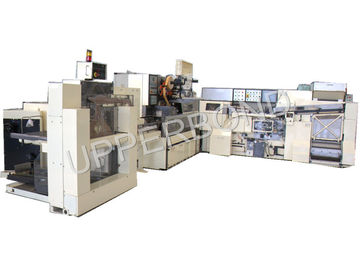

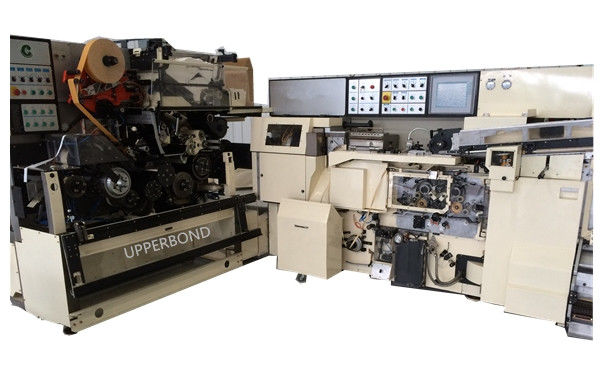

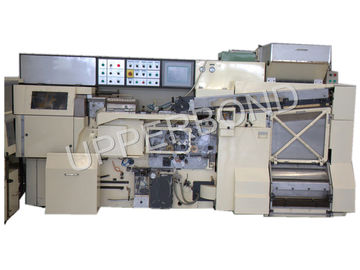

MK9 Cigarette making machine is a combination of three machine units. Each unit fulfills different functions of cigarette rolling, filter assembling and tray filling. With the speed of up t0 5,000 cigarette per minute, this machine automatically produce cigarette at high speed. PLC operation system is equipped over the whole machine which entiles operators to monitor the function of machine, with which MK9 requires fewer labor. Meantime, faulty cigarette will be identified and rejected automatically with microwave weighting system technology.

The overall efficiency of machine is over 85%.

FINISHED GOODS

Different size of cigarette can be made in various speed like KING SIZE, SLIM SIZE, SUPPER SLIM, NANO SIZE etc.

The finished goods of MK9 cigarette maker can be smoked already while the next production process is cigarette packaging (into packet and carton).

TECHNICAL HIGHLIGHTS:

1.The cigarette cutting system uses the double-knife single-cutting system with lower-rise temperature and lower noise. This gives the very good quality of the cigarette cut.

2.The complete suction system and high air pressure system .

3.The hopper system adopts AC servo motor to directly drive the tobacco cutting system. The timing belts are used instead of the gears, so the even tobacco-feeding is greatly improved and the maintenance cost is reduced as well.

4.It adopts AC servo driving system that simplifies the mechanical structures and reduces the failure and maintenance cost, and improves the transmission precision.

5.Electric control system:

 - Control center: it adopts the SIEMENS PLC S7-300 series.

 - Weight controller: the microwave weight control system is adopted to avoid any harm to people.

 - Man-machine interface: The SIEMENS touch screen provides friendly man-machine interface, which displays the machine status and production data precisely. It is also convenient to modify the system parameter and check out the failure.

MAIN PARAMETER:
