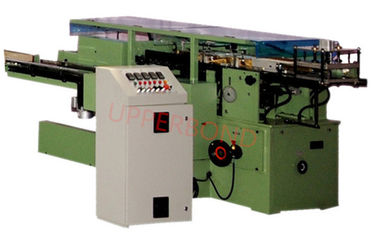

Small Size Carton Overwrapping Machine for Shisha Packing with Siemens PLC

small.img.alt small.img.alt

Large Image :  Small Size Carton Overwrapping Machine for Shisha Packing with Siemens PLC

Product Details:

Place of Origin: China
Brand Name: BINHAO
Certification: CE
Model Number: YB915

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiaton
Packaging Details: Wooden Package in General
Delivery Time: 30 Works Dates
Payment Terms: L/C, T/T,
Supply Ability: 10 Sets per Month
Detailed Product Description
Operation System: Siemens PLC Working Speed: 180 Packets/ Min
Language: English Only Warranty: 12 Monthes
Power: 380V 3 Phase 60HZ Connected Load: 2.12KW
Automaticity: Automatic Neutral Wire Required: Yes
Safety Loop Voltage: 24V
High Light:

tobacco filling machine


molasses machine


Small Size Carton Overwrapping Machine

YB915 Over Wrapper for Cigarette Packing Machine




Good quality cigarette cellophane over-wrapping machine for box packing is widely applicable to automatic film packaging various single boxed articles with a gold tear tape for easy opening, such as medicine, health-care products, foodstuff, cosmetics, and stationery and audio-visual products.




  1. The machine integrated with electrical, pneumatic, mechanical, working stable and reliable, three cams design is the newest innovative and had patent and CE approved.
  2. Uses inverter to control the speed, so could adjust according to the operation need.
  3. The mould change easy, without dismantle drive chain, hopper .save time greatly.
  4. New type double safeguard construction, won’t broke machine parts for any incident.
  5. New type dual cutting knife replace traditional single knife, so could use for very long time.




Item Over wrapper
1.Maximum Speed 18 cartons/min
2.PLC Siemens
3.Technical Documents English only
4.Ambient Temp 18-23°c
5.Ambient RH



6.Machine color Green
7.Year two class preparation According to user’s needs to order
8.Compressed Air From 3-C154 connect to come over
9.Diameter Supply Line Compress air, Inside diameter 8-10mm nylon tube
10.Voltage 380 v, 3 phase 60 hz
11.Connected Load 2.12 kw
12.Safety Loop Voltage 24 v
13.Neutral wire required Yes

1. (GB/12026-89) Nature: Polypropylene BOPP for heat-sealed, can be stretched in vertical two ways. The specification should conform to the Nation Standard GB/12026-89.

2. Dosage: 19-23g/ m2
3. Width: 350mm
4. Diameter of bobbin core diameter :75mm

15.Tear strip 1. Nature of Anti-stretch is strong, force of break no less than 10N, plain and straight, without spirals.
2. Width: 2.5mm
3. Diameter of core diameter: 28mm
4. Dosage: 40-70g/ m2

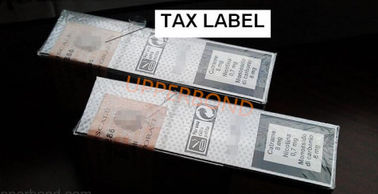

Finished Product:


Small Size Carton Overwrapping Machine for Shisha Packing with Siemens PLC 0


All above these are the major information about this machine, if you want to know more about it you can contact us when you feel free. Your inquiry will be answered within 24 hours, we will try our best to help you.



Package and Shipping

1,Package: Wooden Cases and others.

2,Shipping: We will deliver the goods within 30 works dates in general.Shipping company can be required as your demand.



1. How About the Installation & Adjustment?

After the equipment arrived at the customer’s site, customers are responsible for unpacking and arranging the equipment in reference to the placement drawing or under our install-adjust technicians’ guidance. Costs of our staffs are decided at last.


2. How about the "Quality Assurance"

We are responsible for the faults and damages of the production line caused by our design, technology, manufacture, installation, adjustment and material defect etc.The warranty period is 12 months after acceptance check of the production line. If there is any different between the furnished equipment in the customer’s factory and the equipment concerned in the contract, the users have the right to pass the inspection book to the legal department to claim for compensation to our company within goods warranty period.


3.How about the Warranty?

We offer 12 months maintenance period to the problems that caused by our design, manufacture, and material quality, and offer the relevant parts and effective services for free if the problems was caused by above reasons. We will offer a life-long technical support, after service for customers.
