7.45KW Reclaiming Rejected Tobacco and Cigarette Reclaimer

7.45KW Reclaiming Rejected Tobacco and Cigarette Reclaimer
7.45KW Reclaiming Rejected Tobacco and Cigarette Reclaimer 7.45KW Reclaiming Rejected Tobacco and Cigarette Reclaimer

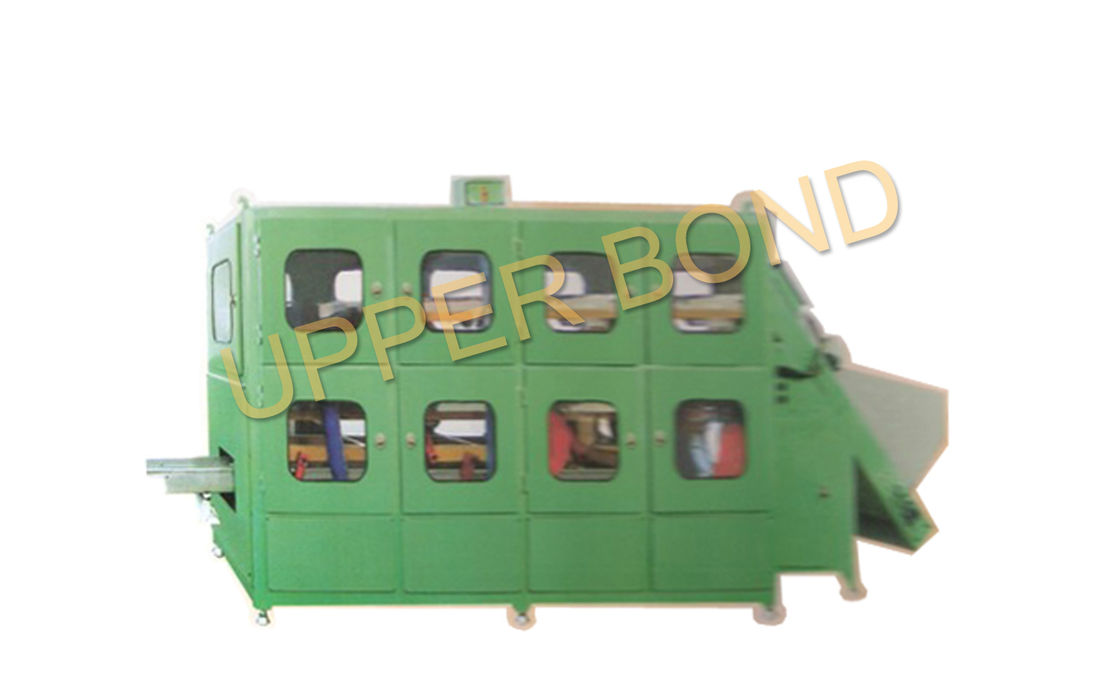

Large Image :  7.45KW Reclaiming Rejected Tobacco and Cigarette Reclaimer

Product Details:

Place of Origin: China
Brand Name: UPPER BOND
Model Number: FY10

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: WOODEN CASES
Delivery Time: 30Works Dates
Payment Terms: T/T
Supply Ability: 100 SETS/YEAR
Detailed Product Description
High Light:

cigarette making equipment

,

cigarette making machine

7.45KW Reclaiming Rejected Tobacco and Cigarette Reclaimer



FY10 Reclaimer for Rejected Cigarette:

It is specific equipment used for reclaiming rejected tobacco from cigarette making combination , with features of cramped structure , fine appearance , small volume and low noise. The way of opening cigarette rod keeps high length ratio , low paper scraps content without lowing down grade and changing moisture and colour of cut tobacco , which can be directly used for making cigarette. The equipment can be installed in cigarette making-packing workshop and made complement to making combination.



Structural Feature:

The equipment overall structure is fully-enclosed box-type and composed of feeding , loosing , ordering , pressing and transferring , rod opening , tearing , stripping , cut rag-paper separating , cut rag-shorts separating , dedusting , metal testing and automatic controlling etc.



Operation Principle:

This machine transports cigarette to the vibrating screen of comb arrangement through constant feeder. The cigarette is combed by the arrangement of vibrating screen, then pass to the belt of main engine equably and lengthways. Then the belt of main engine bring the lengthways arrangement unqualifiedcigarette to the blade impressing institutions, and impress it. As the the belt of main enginerunning, the impressed unqualified cigarette is brough into article open institutions.After rolling into first and  second screening, the cigarette paper, tobacco and powder are separated and transported out separately through discharge hole.



Main Technical Specifications:

Production capacity

80Kg/h

Recovery rate

≥ 90%

The whole silk rate

≥ 70%(base on the whole silk rate)

Including paper   scraps rate of tobacco

< 1%

Recovery of tobacco quality

Can use by the original level

Installed capacity

7.45KW

Weight

2950Kg

Floor space

5m2 ~7m2

Overall dimensions



4000×1200×1900
5000×1400×1800(series of products)

7.45KW Reclaiming Rejected Tobacco and Cigarette Reclaimer 0
