2000 Cig / min MK8 Cigarette Making Machine For King Size Cigarette

Good quality Cigarette Packing Machine for sales
Good quality Cigarette Packing Machine for sales
Product is in high quality. promising after sales

—— Daniel

I'm Online Chat Now

2000 Cig / min MK8 Cigarette Making Machine For King Size Cigarette

China 2000 Cig / min MK8 Cigarette Making Machine For King Size Cigarette supplier
2000 Cig / min MK8 Cigarette Making Machine For King Size Cigarette supplier 2000 Cig / min MK8 Cigarette Making Machine For King Size Cigarette supplier

Large Image :  2000 Cig / min MK8 Cigarette Making Machine For King Size Cigarette

Product Details:

Place of Origin: China
Brand Name: UPPER BOND
Certification: CE
Model Number: MK8

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 30Works Dates
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 SET PER YEAR
Contact Now
Detailed Product Description
Material: Metal Color: Light Green
Power: 380V Frequency: 50Hz
Speed: 2000 Cigarette Per Minute Control Center: Siemens PLC

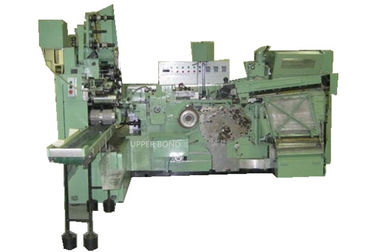

2000 Cig / min MK8 Cigarette Making Machine For King Size Cigarette





MK8 = Cigarette Rolling Machine + Filter Assembling Machine



    a. Cigarette Rolling Machine: To wrap cut-tobacco in cigarette rolling paper and cut into pieces



    b. Filter Assembling Machine: To combine filter with tobacco rod into finished cigarette which can be consumed already





INTRODUCE



This MK8 cigarette making machine is dedicately designed for KING SIZE Cigarette production with a speed of 2,000 cigarette per minute. Modification tools are needed to make another type of cigarettes. The finished goods of this machine will move on to cigarette packaging machine to pack cigarettes into packets, then into cartons. This machine is widely used in Asia, Middle east, Africa and south America markets.







Before manufacturing, cigarette size and machine capacity need to be fanalized as following:



    a. Cigarette length



    b. Cigarette diameter



    c. Machine speed



    d. Filter length



    e. Cork tipping paper width



    f.  Cigarette tray size of both inner and outside



Usually, the first three are necessarily needed to fanalize the machine type.







TECHNICAL DATA





Output: 2000cig/min
Rod Speed 140-175m/min
Cut-off Speed 2000-2500r/min





PRODUCT DIMENSION





Filter Cigarette Length 65- 120mm
Rod Cigarette Length 45-90mm
Rod Cigarette Diameter 6.3-9.0 mm
Filter Plug Length 60-159 mm
Filter Tip Length 15-30mm
Filter Tip Diameter 6.3-9.0mm
CorkPaper Length 13-45mm





AMBIENT CONDITIONS





Air Pressure 6×105pa
Working Pressure 4×105pa
Supply Voltage 380±38 V(3 phases)
Lighting Voltage 220±22V
Frequency 50HZ±1HZ





MACHINE WEIGHT



Maker 3050KG
Plug Assembler 1800KG
Total power 17 kw





2000 Cig / min MK8 Cigarette Making Machine For King Size Cigarette
