Light Grey Mk9 Cigarette Making Machine

Product is in high quality. promising after sales

—— Daniel

I'm Online Chat Now

Light Grey Mk9 Cigarette Making Machine

Light Grey Mk9 Cigarette Making Machine
Light Grey Mk9 Cigarette Making Machine Light Grey Mk9 Cigarette Making Machine

Large Image :  Light Grey Mk9 Cigarette Making Machine

Product Details:

Place of Origin: China
Brand Name: UPPER BOND
Certification: CE, CO
Model Number: MK9

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 30Works Dates
Payment Terms: T/T, L/C
Detailed Product Description
Material: Metal Power: 380V
Frequence: 50Hz Control Center: SEIMENS PLC
Tempreture: 20℃--30℃ Out Put: 5,000 Cig / Min
High Light:

cigarette packing line

,

cigarette packaging machine

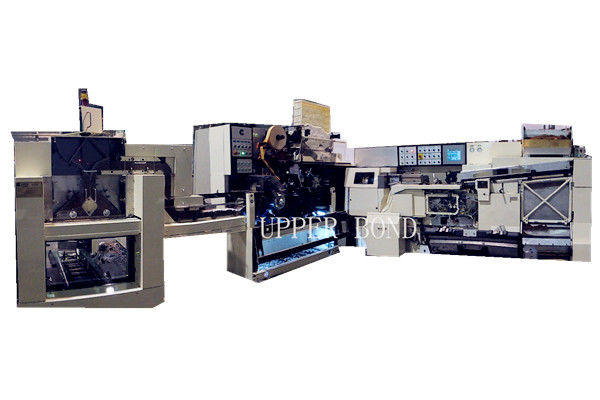

Light Grey Mk9 Cigarette Making Machine With SEIMENS PLC Control System





Production Process: Cigarette rolling, Plug-filter assembling, Tray filling





INTRODUCTION





With the introduce of Technology from Europe, MK9 is a high speed automatic cigarette making machine which can make different size of cigarette according to client's specific demand like KING SIZE, SLIM SIZE, SUPPER SLIM, NANO SIZE etc. This is a combination of three machine units of various function. Microwave weighting system is applied to identify faulty cigarette and reject automatically.SEIMENS PLC control system is anther spot light of the machine where machine will be monitored easily.



MK9 = Cigarette rolling machine + Cigarette assembling machine + Tray filling machine



Cigarette rolling machine:  To wrap cut-tobacco into tobacco rod, then transfer to Plug-filter machine unite



Cigarette assembling machine: To combine filter and tobacco rod together into a finished cigarette wraping with Tipping paper



Tray filling machine: To put cigarette into trays automatically, instead of operation manually, will improve machine efficiency greatly





FINISHED GOODS



Light Grey Mk9 Cigarette Making Machine 0



Different size of cigarette can be made in various speed like KING SIZE, SLIM SIZE, SUPPER SLIM, NANO SIZE etc.



The finished goods of MK9 cigarette maker can be smoked already while the next production process is cigarette packaging (into packet and carton).





MAIN PARAMETER:





Output: 5000cig/min for the king size cigarettes

Frequency: 50Hz

3500cig/min for the super slim cigarettes

Total power: 50KVA

Cigarette parameter

Outside dimensions

Filter-cigarette length: 65 ~110± 0.5 mm

Cigarette maker : 3630× 1270 × 1870mm

Tobacco rod length: 55 ~90 mm

Plug assembler: 3340×1340× 1820mm

Cigarette diameter: φ 5.4 ~φ 9.0 mm

Tray Filler : 2350×2400× 2100mm

Power supply: 380V ± 10%(3phases)

Total weight: 8600kg
