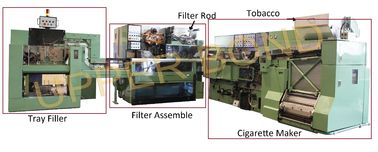

The machine is combited by MK9 cigarette making machine,MAXS filter rod assembling machine and HCF80 tray filler.

In order to meet the international demand of small and medium-sized factory, we would recommend ZJ114 cigarette making and plug assembling combination, including YJ114 cigarette maker, YJ214 plug assembler and YJ35 tray filler. The combination is developed and improved from original MK9/MAX-S/HCF80 cigarette making and plug assembling combination. ZJ114 Combination adopts Servo driver, PLC controller, industrial bus, touch screen, and valve terminal. Its rated speed has reached 5,000cig/min for king size cigarettes. Through the development, its stability and capability have been greatly improved. In the mid of 2008, this machine has also been successfully adjusted to produce super-slim cigarette at the diameter of 5.4mm. So this set of machine could be customized to the customer’s exact requirement. Nowadays ZJ114 combination is our main product for export and is very popular in the world.

The hopper system adopts AC servo motor to directly drive the tobacco cutting system, and it cancels the variable speed unit; in the meantime, the timing belts are used instead of the gears, the tobacco-feed evenness is improved greatly．Pneumatic control is adopted instead of the magnetic control, and the stability of the electrical heater is much higher.The improved rod feed-in device can not only perform the function of breaking rod, , it but also becomes the support of the subsequent rod. After breaking the rod, it avoids the failure of rod breakage. The cigarette tip turner of MAX70 machine is adopted to increase the stability of the performance of turning the cigarette tip.The material of the original catcher shield is nonmetal; it is prone to be worn down. The improved material one is metal, with greater endurance.

The control center adopts the PLC of SIEMENS S7-300 SERIES. It relies on PRFIBUS-DP to transmit the signals between the main PLC and valve terminal and AC servo motor.

The original pneumatic system has many control circuitries and the pneumatic parts are easy to be aging. The improved system utilizes centralized and integrated electromagnetic valve terminal. And internationally famous brand of pneumatic components (FESTO) are adopted, overcoming the original limitation and increasing its stability and reliability.

In order to meet the international demand of the small-sized and medium-sized factory, we have successfully improved MK9/MAX-S/HCF80 cigarette making and plug assembling combination. The Upgraded MK9/Max-s Cigarette Making Combination adopts Servo drive, PLC controller, industrial bus, touch screen, and valve terminal. Its speed has reached 5,000cig/min. Through our development of many parts, its stability and capability have been greatly improved. So far, it has been exported to America, Canada, Germany, Czech, Malaysia and Bosnia & Herzegovina. Nowadays MK9-MAX combination is our main product for export and enjoys wide popularity in the world.

AC servo driving system is adopted to improve the driving system

We utilize the electrical gear function of AC servo driving system, and improve greatly on the driving system of the combination. We cancel the following gear boxes: cut-off, taper drum, suction drive, hopper drive, linkage parts between cigarette maker and plug assembler, instead we use servo motors to  drive above-mentioned parts. So the mechanical frameworks are simplified, the failure and the maintenance cost is reduced, and the driving accuracy is improved.

 Main Parameters:
