3 Phase Cigarette Rolling Machines Filter Assembling And Tray Filler , High Speed

China 3 Phase Cigarette Rolling Machines Filter Assembling And Tray Filler , High Speed supplier
3 Phase Cigarette Rolling Machines Filter Assembling And Tray Filler , High Speed supplier 3 Phase Cigarette Rolling Machines Filter Assembling And Tray Filler , High Speed supplier 3 Phase Cigarette Rolling Machines Filter Assembling And Tray Filler , High Speed supplier 3 Phase Cigarette Rolling Machines Filter Assembling And Tray Filler , High Speed supplier

Large Image :  3 Phase Cigarette Rolling Machines Filter Assembling And Tray Filler , High Speed

Product Details:

Place of Origin: China
Brand Name: UPPER BOND
Model Number: MK9

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: WOODEN CASES
Delivery Time: 30Works Dates
Payment Terms: T/T, L/C
Supply Ability: 100 SETS/YEAR
Contact Now
Detailed Product Description
Output: 5000cig/min Frequency: 50Hz
Control Center: SIEMENS PLC S7-300 Series Power Supply: 380V ± 10%(3phases)
Cigarette Size: King Size,Slim Size,Super Slim Size Filter-cigarette Length:: 65 ~110± 0.5 Mm

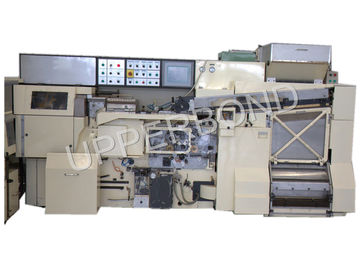

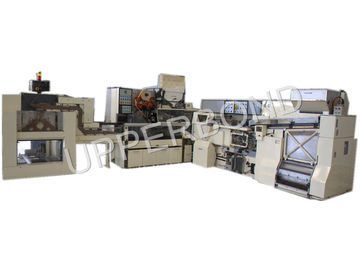

3 Phase Cigarette Rolling Machines Filter Assembling And Tray Filler , High Speed

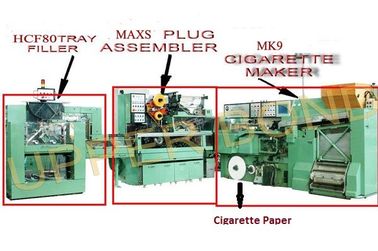

The machine is combited by MK9 cigarette making machine,MAXS filter rod assembling machine and HCF80 tray filler.The machine steady and high speed.There are a lot of factory use it.Its product has high quality.





Highlights:



1. The cigarette cutting system uses the double-knife single-cutting system with lower-rise temperature and lower noise. This gives the very good quality of the cigarette cut.

2. The complete suction system and high air pressure system .

3. The hopper system adopts AC servo motor to directly drive the tobacco cutting system. The timing belts are used instead of the gears, so the even tobacco-feeding is greatly improved and the maintenance cost is reduced as well.

4. Control center: it adopts the SIEMENS PLC S7-300 series.

5.Man-machine interface: The SIEMENS touch screen provides friendly man-machine interface, which displays the machine status and production data precisely. It is also convenient to modify the system parameter and check out the failure.

6.It adopts AC servo driving system that simplifies the mechanical structures and reduces the failure and maintenance cost, and improves the transmission precision.

7.Weight controller: the microwave weight control system is adopted to avoid any harm to people.





 Main Parameters:



Output: 5000cig/min for the king size cigarettes

Frequency: 50Hz

3500cig/min for the super slim cigarettes

Total power: 50KVA

Cigarette parameter

Outside dimensions

Filter-cigarette length: 65 ~110± 0.5 mm

Cigarette maker : 3630× 1270 × 1870mm

Tobacco rod length: 55 ~90 mm

Plug assembler: 3340×1340× 1820mm

Cigarette diameter: φ 5.4 ~φ 9.0 mm

Tray Filler : 2350×2400× 2100mm

Power supply: 380V ± 10%(3phases)

Total weight: 8600kg

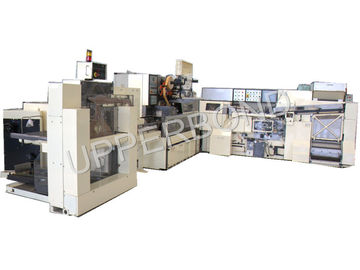

3 Phase Cigarette Rolling Machines Filter Assembling And Tray Filler , High Speed
