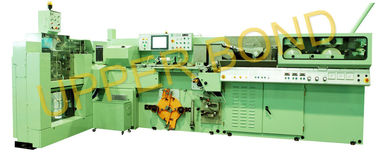

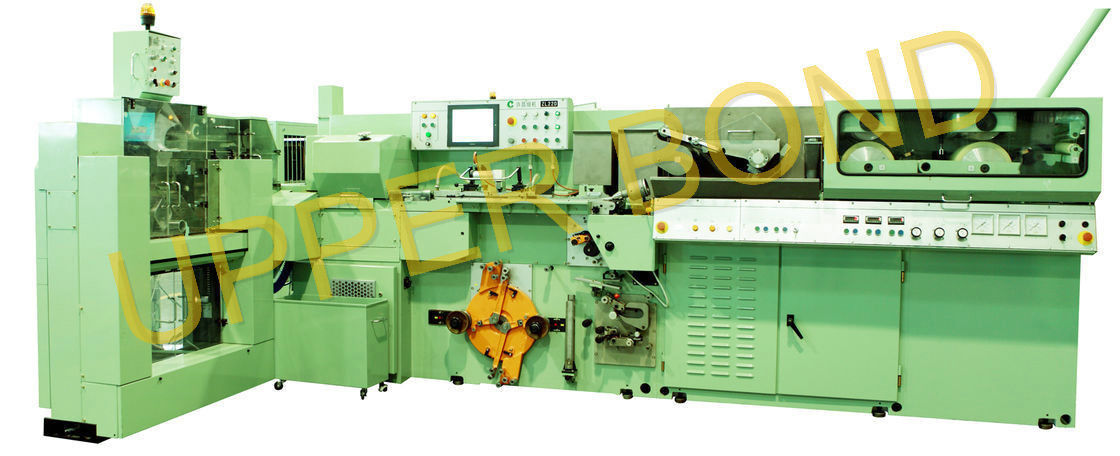

KDF2 Cigarette Filter Machine With Siemens PLC Control Filter Rod 400m / min
Product Information:
KDF2 Filter Rod Making Combination keep the traditional advantage ofstructure and adopts advanced techniques of SERVO controller, communication and inspection. It operates very stably, producing filter rod with high quality. Production Speed reaches 400m/min.
1.This combination reserves the interfaces of factory informationization and network.
2.The electrical control system adopts SIEMENS S7-300 PLC control system.
3.Man-machine interface makes it easy to communicate between operator and machines.
4.Driving and driven linkage with 5 servo motors is adopted for the system. Mechanical power loss won’t occur. High accuracy electronic synchronous drive for the system realizes synchronous speed and phase which intensifies original mechanical drive performance.
5.Plugwrap Splicing at any speed can avoid large fluctuation of machine speed, so that filter rod quality and production efficiency are increased.
MAIN PARAMETERS
1.Output: |
400m/min |
2.Power Voltage: |
380V±38V |
Power Frequency: |
50HZ±1HZ |
Total Power: |
22KVA |
3.Filter Rod Range |
|
Filter Rod Diameter: |
φ6 –φ9mm |
Filter Rod Length: |
64mm–150mm |
4.Normal Specification |
|
Filter Rod Diameter: |
φ7.7 –φ7.79mm |
Standard Filter Rod Length: |
120±0.5mm |
Filter Rod Length: |
90, 100, 120, 150mm |
5.OVERALL SIZE(L×W×H): |
8060×2370×3000mm |
6.Weight: |
|
YL12D Tow Processor: |
1100Kg |
YL22D Filter Rod Maker: |
2000Kg |
YJ35D Tray Filler: |
1500Kg |
