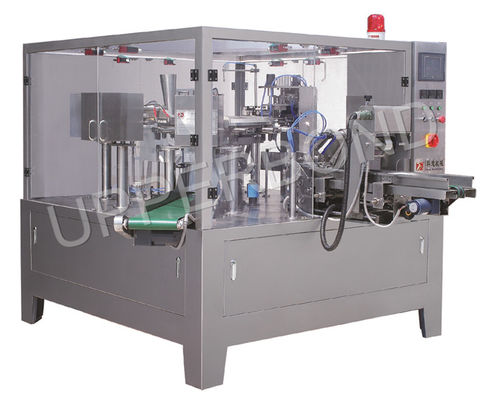

Capacity 20 - 30 Pouch/Min RYO Roll Your Own Tobacco Pouch Filling Line

Capacity 20 - 30 Pouch/Min RYO Roll Your Own Tobacco Pouch Filling Line
Capacity 20 - 30 Pouch/Min RYO Roll Your Own Tobacco Pouch Filling Line

Large Image :  Capacity 20 - 30 Pouch/Min RYO Roll Your Own Tobacco Pouch Filling Line

Product Details:

Place of Origin: China
Brand Name: UPPERBOND
Certification: ISO9001
Model Number: BH-TP2

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 30 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets per month
Detailed Product Description
Material: RYO Tobacco Capacity: 20 - 30 Pouch/min
Pouch Size: Customizable Place: China
Filling Style: Automatic
High Light:

30 Pouch/Min Tobacco Pouch Filling Line

,

8KG/cm2 Tobacco Pouch Filling Line

,

PLC Cigarette Production Machine

Capacity 20 - 30 pouch/min RYO Roll Your Own Tobacco Pouch Filling Line





Instruction



This line is used for RYO Roll-Your-Own Tobacco, which fills tobacco cut rag into small pouch. It is customized by sample from the customer. Its packaging process is from scattering tobacco, elevating, quantitative weighing, forming to sending out automatically, artificial bag packaging, then outer packaging by packaging machine.



This line adopt the advanced technology from Oversea, we design it in a high quality, high-powered fully auto feeding, measuring, filling, sealing, printing date and product carry-out packaging machine after improving. This machine adopt PLC control, advanced touch screen, photocell auto orientation tracking, it can make the machine operation more simply, perfect, it is the best equipment for food line for high production efficiency, low labor intensity.





Packaging Process



Scattered Feeder — Elevator — Quantitative Weighing — Forming —Sending Out — Bagging by Manual — Outer Packaging





Technical Characteristics



This line is customized by sample from the customer. Its packaging process is from scattering tobacco, elevating, quantitative weighing, forming to sending out automatically, artificial bag packaging, then outer packaging by packaging machine.



Machine is controlled by PLC and touch screen, and it is mostly made of 304 stainless steel materials.





Parameter



Material RYO tobacco
Tobacco weight 20 - 50 g
Capacity 20 - 30 pouch/min
Power 220 V, 50/60 HZ
Air Source 6—8 KG/cm2
Dimension 4000*3000*3000 mm
Weight 1500 KG
Packing Wooden Case





Capacity 20 - 30 Pouch/Min RYO Roll Your Own Tobacco Pouch Filling Line 0
