Cigarette Storing And Transferring System Large Capacity Of Buffering

China Cigarette Storing And Transferring System Large Capacity Of Buffering supplier
Cigarette Storing And Transferring System Large Capacity Of Buffering supplier

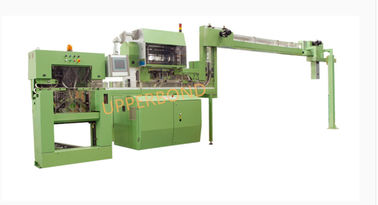

Large Image :  Cigarette Storing And Transferring System Large Capacity Of Buffering

Product Details:

Place of Origin: China
Brand Name: China Tobacco
Model Number: ZJ114

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: WOODEN CASES
Delivery Time: Five months
Payment Terms: T/T, L/C
Supply Ability: 100 SETS/YEAR
Contact Now
Detailed Product Description
Model: ZF12B Output: 14000cig/min
Power: 7.9kw Packing: Wooden Cases
Voltage: 380v Leadtime: Three Months
High Light:

cigarette making machine

,

cigarette packing line







ZF12B Cigarette Storing and Transferring System







Introduction:



ZF12B is a flexible link-up system for the cigarette maker and the packer which is manufactured after the improvement of COMFLEX-1 technology. It consists of three machines: YJ35D Tray Filler, YBl7 Tray Unloader and YF12B Transferring Unit, which are coordinated effectively by PLC. This equipment is installed between the cigarette maker and packer for cigarette transferring and buffering. During the cigarette transferring, whenever the cigarette maker or the packer is stopped, it could guarantee that one part of the system is normally running through tray filling and tray unloading.







Technical Features:



1. Highly flexible, large capacity of buffering, the cigarettes could be transferred reliably and stably.

2. The installation arrangement is flexible and suitable to the various machines and the workshops.

3. The electric cabinet is fitted on the top of tray filler, the electric cabinets of tray unloader and transferring unit are integrated together, taking less space, convenient for field management.

4. The elevating mechanism of transferring unit could choose either vertical lifting or tilting lifting, meeting the customers' different needs.

5. Electric control system adopts SIEMENS PLC and PROFIBUS filed-bus technology. The fault rate is low and the performance is reliable.

6. The SIEMENS touch screen could display the fault information and position. The parameters are easy to be set and adjusted.







 Main Technical Parameters:





Output:

14000cig/min

Cigarette parameter

Filter-cigarette length:65- 150±0.5mm

Cigarette diameter: φ5.4-9.0mm

                                                                                                                                            Outside dimensions





Cigarette maker : 3630× 1270 × 1870mm

Plug assembler: 3340×1340× 1820mm

Tray Filler : 2350×2400× 2100mm

Power supply: 380V ± 10%(3phases)

Total weight: 9500kg

Tray storing capacity in the system Tray specification can be customized
Empty trays can be stored on the empty tray station of the tray filler Full trays can be stored on the full tray station of the tray unloader
Compressed air pressure: 0.6Mpa Working pressure: 0.4Mpa
