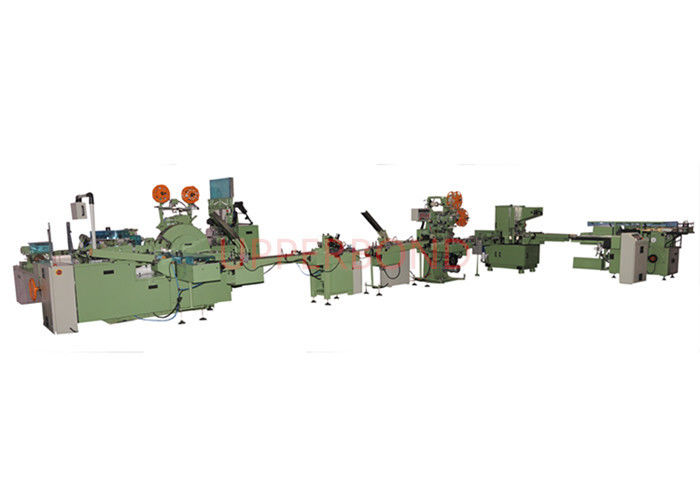

High-speed Automatic Whole Set Cardboard Packet and Carton Packing Line

large.img.alt
small.img.alt

Large Image :  High-speed Automatic Whole Set Cardboard Packet and Carton Packing Line

Product Details:

Place of Origin: China
Brand Name: UPPER BOND
Certification: CE
Model Number: P180

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: WOODEN CASES
Delivery Time: 30Works Dates
Payment Terms: T/T
Supply Ability: 100 SETS/YEAR
Detailed Product Description
Cigarette Circumference: 22±0.3mm Rated Production Capacity: 180 Packets / Min
Cigarette Standard Length: 84mm Packet Outside Dimension: 87.5×56×23.5mm (Collation 7*6*7)
Carton Outside Dimension: 283×88.5×48mm Carton Packing Style: European Style
Power Consumption: 9.92kw Total Weight: 8150kg
Outside Dimension: 8600×6700mm
High Light:

cigarette making machine

,

cigarette packing line



P-180 Cardboard Packet and Carton Packing Line



Application:



P-180 Cardboard Packet and Carton Packing Line is used to pack the cigarettes in length of 84-100mm with different diameters, in different arrangement. It can automatically complete the operations of hinge-lid cardboard packet packing, label tax, wrapping, box and box over wrapping.

This machine has automatic protecting, testing, ejecting and indicating fault functions, and easy operation and convenient maintenance. It is the ideal cigarette hard packing equipment. About the standard of the products, we can make the various according to the customers' requirements.



High-speed Automatic Whole Set Cardboard Packet and Carton Packing Line 0

High-speed Automatic Whole Set Cardboard Packet and Carton Packing Line 1



High-speed Automatic Whole Set Cardboard Packet and Carton Packing Line 2





Technical Parameters:
Rated Production Capacity 180 packets / min
Cigarette Standard Length 84mm
Circumference 22±0.3mm
Packet Outside Dimension 87.5×56×23.5mm (Collation 7*6*7)
Carton Outside Dimension 283×88.5×48mm
Way of Carton Packing European Style
Power Consumption 9.92kw
Unit Weight 8150kg
Outside Dimension 8600×6700mm



Requirement for the Working Conditions:
Ambient Temperature 25±5°C
Relative Humidity 55-65%
Height Above Sea Level not higher than 2000m
The Dust Content of the Air in the Worksite not more than 3mg/m3
Power Supply
Voltage 380±38V
Frequency 50HZ
Air Supply
Compressed Air Pressure > 0.6 MPa , Flow > 48m3/h
Pressure of the Vacuum > 0.05 MPa , Flow > 60m3/h





All above these are the major information about this machine, if you want to know more about it you can contact us.



Package and Shipping

1,Package: Wooden Cases and others.

2,Shipping: We will deliver the goods within 30 works dates in general.Shipping company can be required as your demand.



FAQ

1. How About the Installation & Adjustment?

After the equipment arrived at the customer’s site, customers are responsible for unpacking and arranging the equipment in reference to the placement drawing or under our install-adjust technicians’ guidance. Costs of our staffs are decided at last.



2. How about the "Quality Assurance"

We are responsible for the faults and damages of the production line caused by our design, technology, manufacture, installation, adjustment and material defect etc.The warranty period is 12 months after acceptance check of the production line. If there is any different between the furnished equipment in the customer’s factory and the equipment concerned in the contract, the users have the right to pass the inspection book to the legal department to claim for compensation to our company within goods warranty period.



3.How about the Warranty?

We offer 12 months maintenance period to the problems that caused by our design, manufacture, and material quality, and offer the relevant parts and effective services for free if the problems was caused by above reasons. We will offer a life-long technical support, after service for customers.
