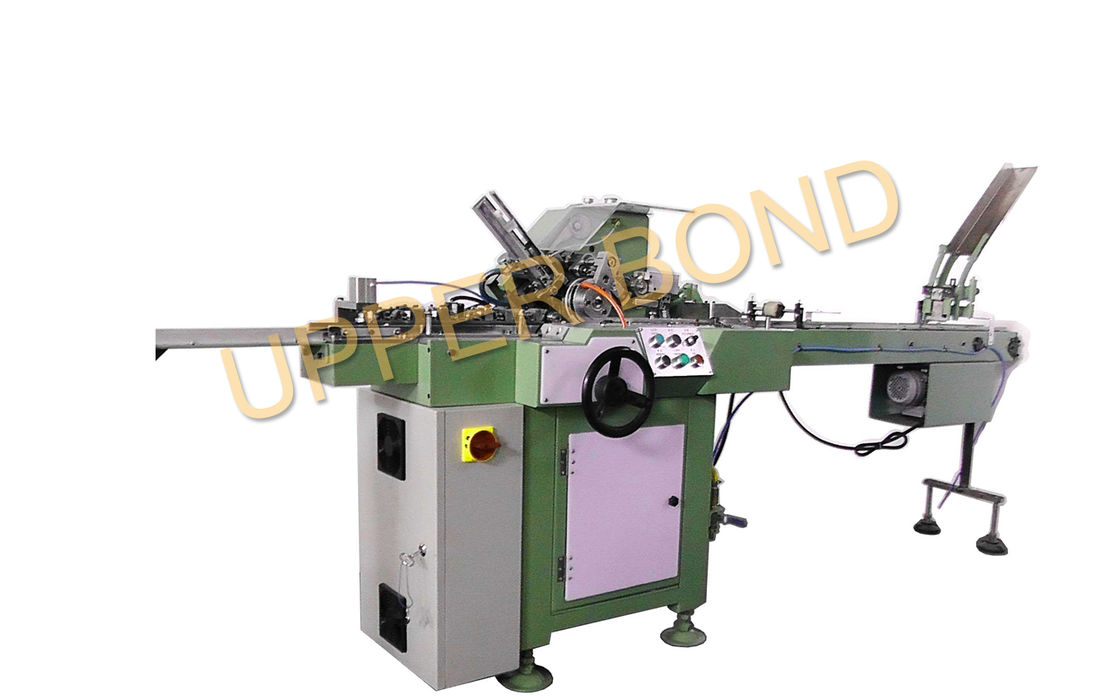

0.03Mpa 30m3 / hh HLP2 Stamping Tobacco Packing Machine

Item

Stamping Machine

1.Max Speed

180 packets/Min

2.Working Speed

180 packets/Min

3.Technical Documents

English only

4.Ambient Temp

25±5℃

5.Ambient RH

55%～65%

6.Negative pressure pump

Supplied by Buyer

7.Color

Green

8.Year two class preparation

According to user’s needs to order

9.Vacuum pump   Needs

pressure  >0.03Mpa
flow      >30m3/hh

10.Diameter Supply Line

Inside diameter 8 mm nylon tube

11.Power

380 V  3 phase 60 Hz

12.Connected Load

0.45KW

13.Safety Loop Voltage

24 Volt

14.Need for Neutral Wires

Yes

15.Tax tag:

a. Type: Single-side glue Paper,
b. Dosage: 70-80g/m2
c. Thickness: 0.07-0.08 mm
d. Dimension: 23×48mm
e. Moisture: ≤10%
f. Air penetration :7.8-8.4s/1000ml
g.degree of sizing: 0.5mm
