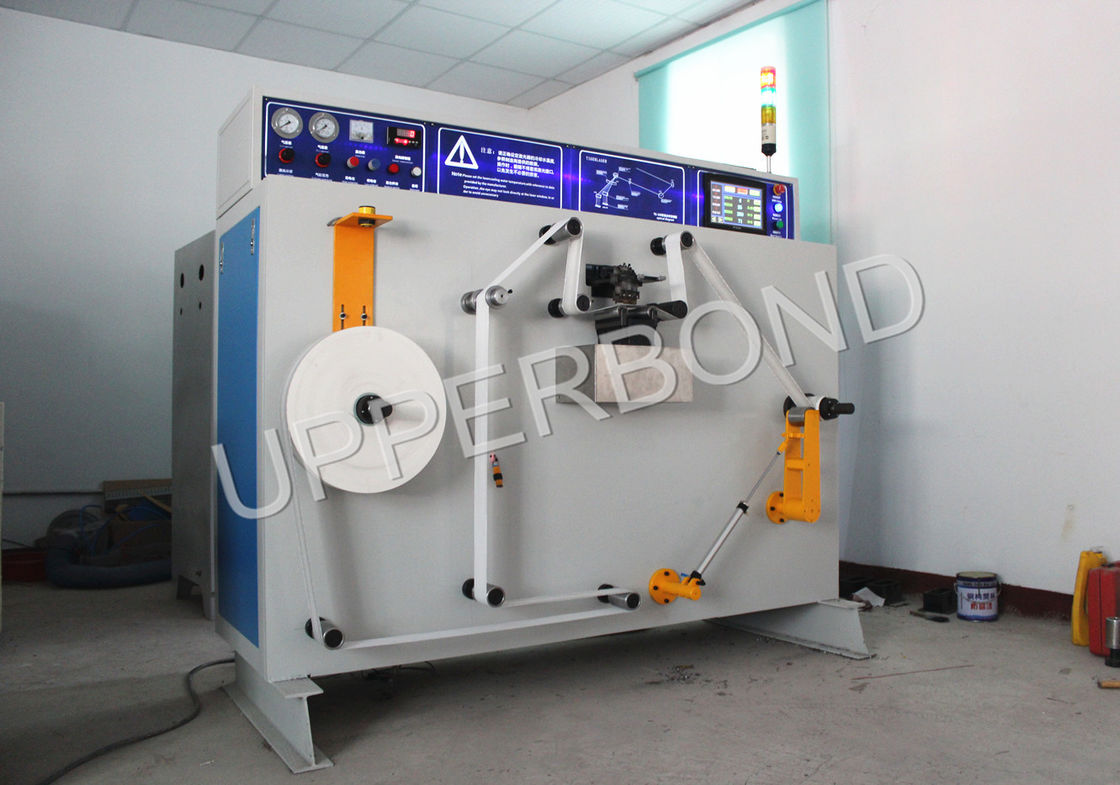

Off-line Laser Perforation Machine AC 220V 50Hz , Cigarette Tpping Paper

China Off-line Laser Perforation Machine AC 220V 50Hz , Cigarette Tpping Paper supplier
Off-line Laser Perforation Machine AC 220V 50Hz , Cigarette Tpping Paper supplier Off-line Laser Perforation Machine AC 220V 50Hz , Cigarette Tpping Paper supplier Off-line Laser Perforation Machine AC 220V 50Hz , Cigarette Tpping Paper supplier Off-line Laser Perforation Machine AC 220V 50Hz , Cigarette Tpping Paper supplier Off-line Laser Perforation Machine AC 220V 50Hz , Cigarette Tpping Paper supplier Off-line Laser Perforation Machine AC 220V 50Hz , Cigarette Tpping Paper supplier Off-line Laser Perforation Machine AC 220V 50Hz , Cigarette Tpping Paper supplier Off-line Laser Perforation Machine AC 220V 50Hz , Cigarette Tpping Paper supplier

Large Image :  Off-line Laser Perforation Machine AC 220V 50Hz , Cigarette Tpping Paper

Product Details:

Place of Origin: China
Brand Name: UPPER BOND
Model Number: CTP-L50

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: WOODEN CASES
Delivery Time: 30Works Dates
Payment Terms: T/T
Supply Ability: 1000 SETS/YEAR
Detailed Product Description



AC 220V 50Hz, 5 - 30pcs / cm Laser Perforation Machine Cigarette Tpping Paper







CTP Laser Perforation Machine
CTP-L50/100/200 Laser perforation is composed of optics, mechanical drive and electric control. It is

a typical optical-mechanical-electrical integration equipment.
CTP-L50/100/200 Laser Perforation Machine is mainly used to perforate in the cigarette tipping paper.




Features:
1. Microcomputer intelligent Control system using the German SIMEMS . Allows you to operate more

convenient.
2. Laser generator used from U.S. SYNAD RF RF-excited CO2 100W laser, long working life, high

stability.

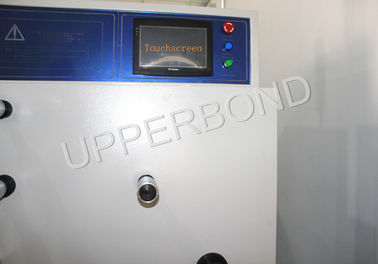

3. The LCD screen display; setting up various work Parameters, the use of more intuitive.
4. Mechanical corrective devices to ensure the punch edge distance and flatness of panel face.
5. Shortcut function keys easy to operate , A click-to-get.
6. Fault Diagnosis  Equipment failure, LCD screen directly for easy maintenance.
7. Rewinding system adopts Japanese YASKAWA YASKAWA VS-606V7 Inverter systems, reliability

can be high
8. Strong emission of waste, Removal of the production of exhaust gas to maintain the production environment with fresh air.
9. Rolling pressure paper round.

CTP-L50 Parameters:
Max Diameter of Tipping roll:     510mm
Width of Tipping paper:              48mm—68mm
Speed of Perforation:                  40m/min—200m/min
Diameter of Perforation:              Min 80*80um Max 400*200um
Density of Perforation:               5--30pcs/cm(adjusted)
Perforation style:      both sides, 1--2rows each side (Adjusted)
Laser Power:           50W (import)
Air permeability :     100CU—500CU
Stability:                  ﹤6%
Input power supply:           AC220V50Hz
Max output power:            <5KW
Outside size:               1700*1550*850mm
Working temperature: 20℃—25℃
Weight:                      1.1Ton


CTP-L100 Parameters:
Max Diameter of Tipping roll:      510mm
Width of Tipping paper:               48mm—68mm
Speed of Perforation:                  40m/min—250m/min
Diameter of Perforation:              Min 80*80um Max 400*200um
Density of Perforation:                5--30pcs/cm(adjusted)
Perforation style:   both sides, 1--4rows each side (Adjusted)
Laser Power:        100W (import)
Air permeability :  100CU—1000CU
Stability:                ﹤6%
input power supply:   AC220V50Hz
Max output power:    <5KW
Outside size:             1700*1550*850mm
Working temperature: 20℃—25℃
Weight:                      1.1Ton


CTP-L200 Parameters:
Max Diameter of Tipping roll:  510mm
Width of Tipping paper:           48mm—68mm
Speed of Perforation:              40m/min—300m/min
Diameter of Perforation:          Min 80*80um Max 400*200um
Density of Perforation:             5--30pcs/cm(adjusted)
Perforation style:      both sides, 1--6rows each side (Adjusted)
Laser Power:           200W (import)
Air permeability :     100CU—1500CU
Stability:                  ﹤6%
input power supply:       AC220V50Hz
Max output power:        <5KW
Outside size:                 1700*1550*850mm
Working temperature:    20℃—25℃
Weight:                        1.1Ton

CTP Laser Perforation1water

Off-line Laser Perforation Machine AC 220V 50Hz , Cigarette Tpping Paper
