Cigarette Packing Machine , Five Phase Tobacco Packing Machine 380V 60HZ

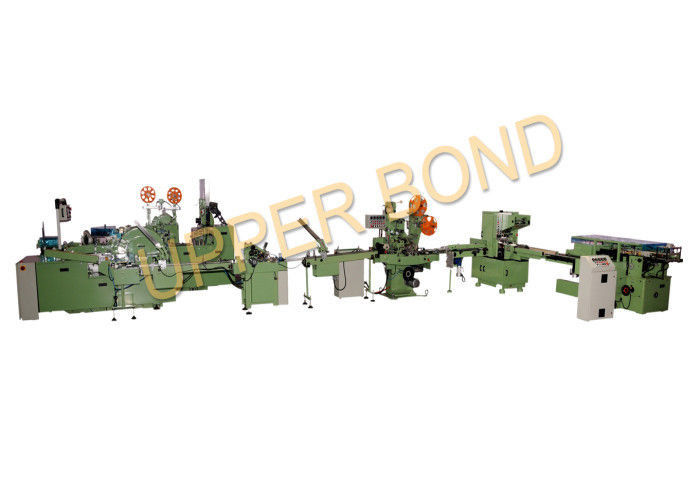

Large Image : Cigarette Packing Machine , Five Phase Tobacco Packing Machine 380V 60HZ

Product Details:

Place of Origin:	China
Brand Name:	UPPERBOND
Model Number:	Molasses cigarette packing machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Wooden case
Delivery Time:	30Works Dates
Payment Terms:	TT
Supply Ability:	1000sets/per year

Contact Now

Detailed Product Description

High Light:

automatic cigarette making machines

cigarette machine tobacco

P-180 Tobacco Packing Machine 380V 60HZ With Siemens PLC

Product Information:

P-180 Cardboard Packet Packing Line is used to pack the cigarettes
in length of 84-100mm with different diameters, in different arrangement. It can automatically complete the operations of hinge-lid cardboard packet packing, packet film wrapping, carton packing and carton film overwrapping. And its packing speed is 180 packets per minute.

The line has slow starting, automatic protecting, testing, ejecting and indicating fault functions, and features, and features easy operation and convenient maintenance. It is the ideal cardboard packaging equipment. About the standard of the products, we can make the various according to the customers' requiems, for example 12pcs/box, 16pcs/box, 10pcs/box etc..

This machine is used to packing the BOPP film outside the packet paper, it can also be used in packing Molasses Tobacco.

Technical Parameters:

Item	Packet Wrapper
1.Max Speed	180-180 Packets/Min
2.Working Speed	180-180 Packets/Min
3.Text Displays	YB43
4.Technical Documents	English only
5.PLC	Siemens
6.Ambient Temp	25±5℃
7.Ambient RH	55%～65% RH
8.Color	Green
9.Year two class preparation	According to user needs to order
10.Compressed Air Needs	pressure >0.60Mpa flow >48m3/h
11.Diameter Supply Line	Inside diameter 8-10mm hose
12.Power	380 V , 3 Phase 60HZ
13.Connected Load	3.6KW
14.Safety Loop Voltage	24 Volt
15.Need for Neutral Wires	Yes
16.BOPP	1. nature: Polypropylene BOPP for heat-sealed, can be stretched in vertical two ways. The specification should conform to the Nation Standard GB/12026-89. 2. dosage 19-23g/ m2 3. width 118mm 4. diameter of bobbin core ∮75
17.Tear strip	1. Nature of Anti-stretch is strong, force of break no less than 10N, plain and straight, without spirals. 2. width 2.5mm 3.diameter of core ∮28mm 4. dosage 40-70g/ m2
18.Size	87.5×56×23.7mm
